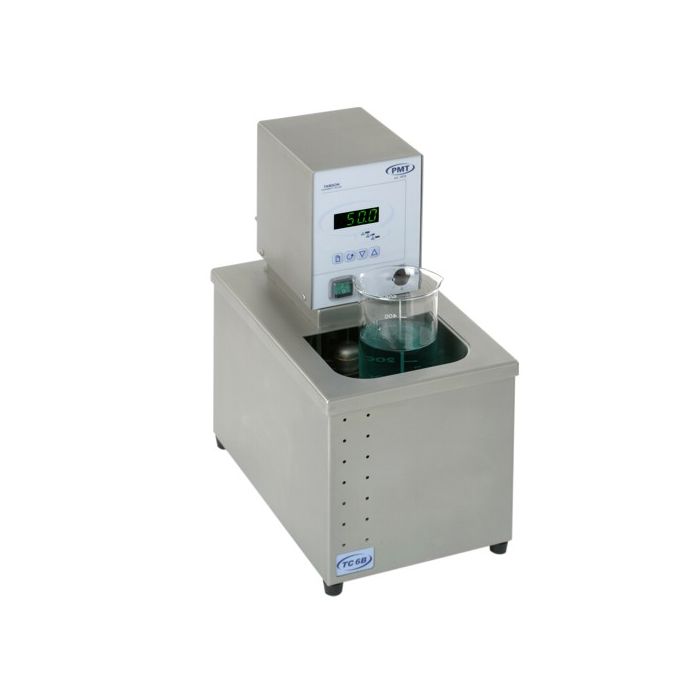

TC6B Bath/circulator 115V-60Hz
TC6B Bath/circulator 115V-60Hz
The TC6B can both be used both as circulator or bath. The bath fluid is heated via a micro¬processor controlled heating element. When working below ambient temperature cooling fluid can be circulated through the cooling coil to lower the bath temperature.
Bath Temperature Accuracy
0.03°C
Bath Volume
6 litre
Bath Height
440 mm
Weight
31.0000
Minimum Temperature
Ambient
Maximum Temperature
200°C
Details
The TC6B can both be used both as circulator or bath. The bath fluid is heated via a micro¬processor controlled heating element. When working below ambient temperature cooling fluid can be circulated through the cooling coil to lower the bath temperature.
The bath is equipped with a fluid level indicator. The microprocessor controlled heating with auto tune function guarantees precise temperature control.
The bath temperature can be set to a maximum of +200°C (392°F) in steps of 0.1degree. The overall system accuracy is 0.03°K.

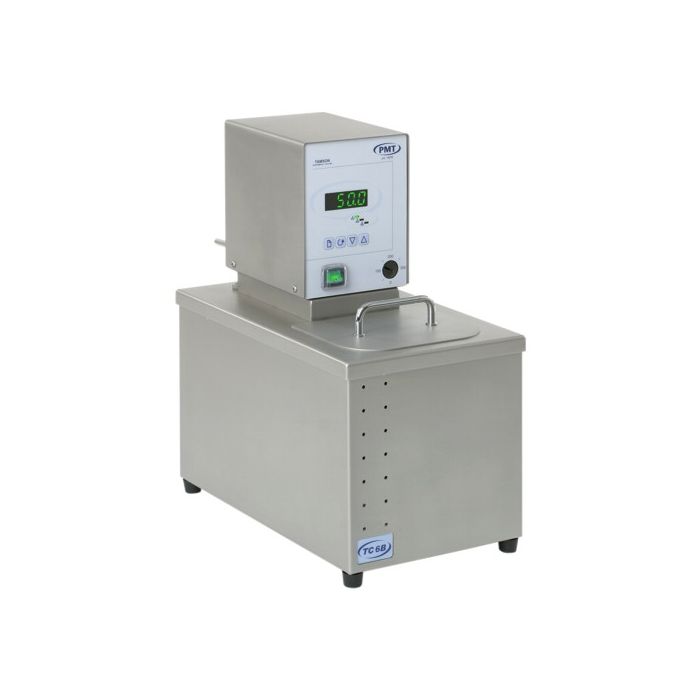

A top lid is included.
The bath conforms to CE regulation. It further is equipped with multiple safety features in order to guarantee safe around the clock operation. A mechanical safety thermostat protects the bath against high temperatures and will automatically reset itself after switching the bath off and on again. The safety thermostat can be set between ambient and +300°C. In case of over temperature electronics and motor are switched off. The pump motor is protected against mechanical overload via a resettable fuse.
Standard available in °C, on request in °F.
A pump circulates the bath content or provides external circulation. The pump pressure is 300 mBar and maximum flow is 7.5 litres per minute with no counter pressure.
