TLC15-5 115V-60Hz

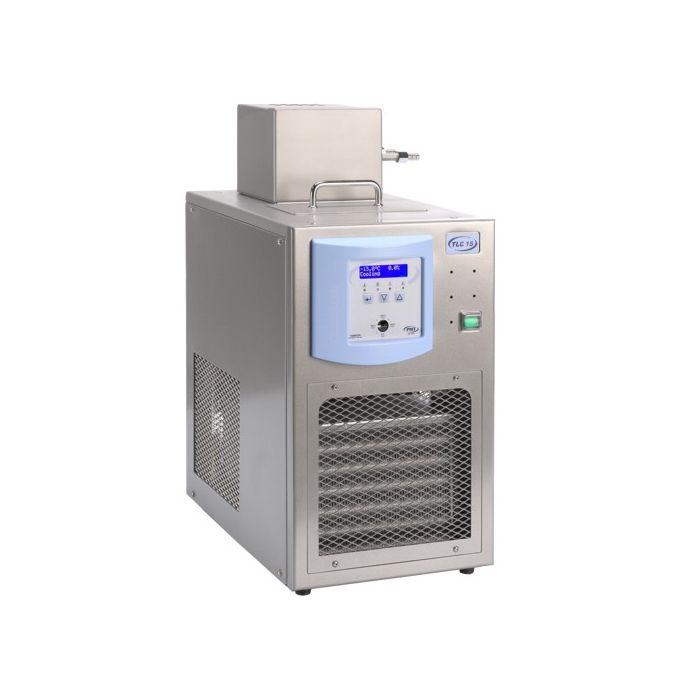

Tamson Low Temperature Circulator TLC15-5 with a temperature range from -15°C up to 120°C. The bath volume is 5 litres and the bath opening measures 100 x 150 mm.
Bath Temperature Accuracy
0.02°C
Bath Volume
5 litre
Weight
40.0000
Minimum Temperature
-15°C
Maximum Temperature
120°C
Details
Tamson Low Temperature Circulator TLC15-5 with a temperature range from -15°C up to 60°C (up to 120°C on request). This type of cooling circulator can be used for multiple heat removal purposes like replacement of tap water, general cooling or in combination with flash point testing instruments.
The bath volume is 5 litres and the bath opening measures 100 x 150 mm. TLC15-5 is made from stainless steel and delivered with a lid.
TLC15-5 can be used for cooling and heating application. A pressure pump provides circulation in the bath or via an external circuit. The pump pressure is 0.3 Bar (no counter pressure) and 7 litres per minute (no counter pressure).
Optional is performance pump 0.7 Bar (P/N 24T0398).
The set point is adjustable in steps of 0.01°C. The overall system accuracy is better than ± 0.02°C.
The bath conforms to CE regulations. Further it is equipped with a mechanical adjustable and resettable safety thermostat to guarantee safe around the clock operation.
