TC58 230V-50~60Hzā
TC58 230V-50~60Hz

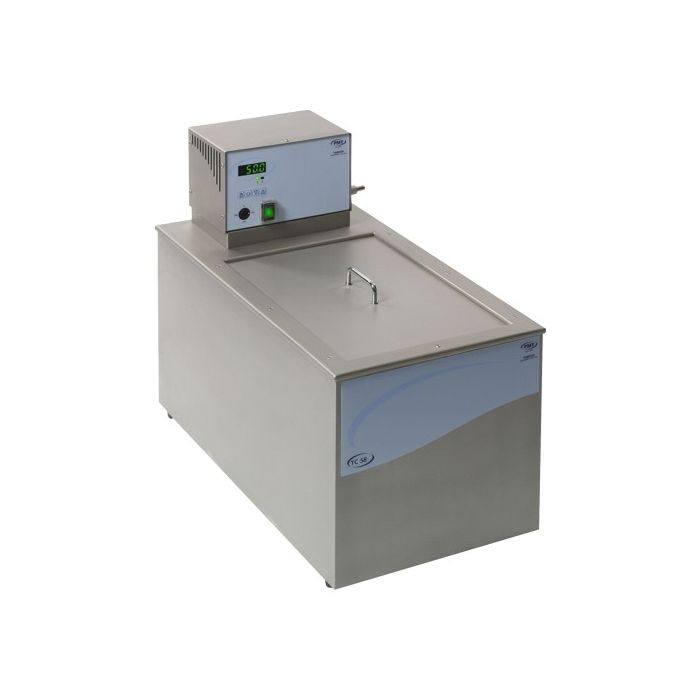

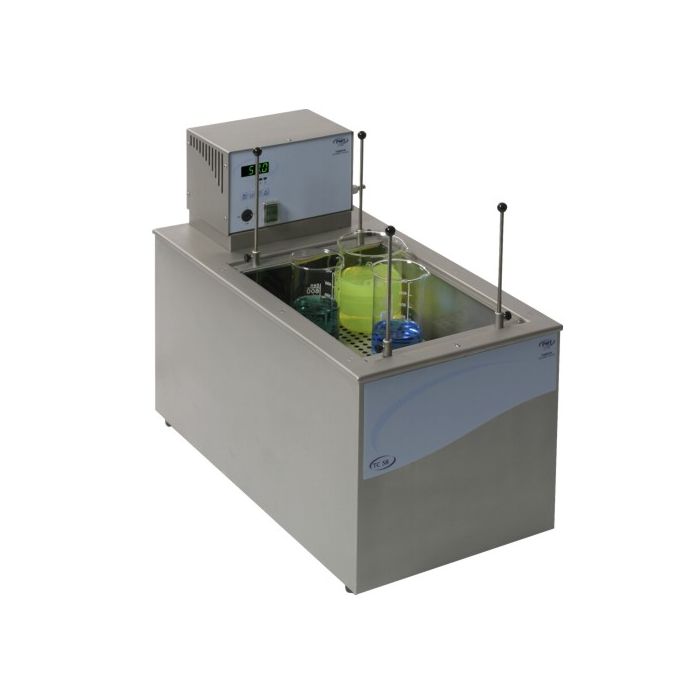

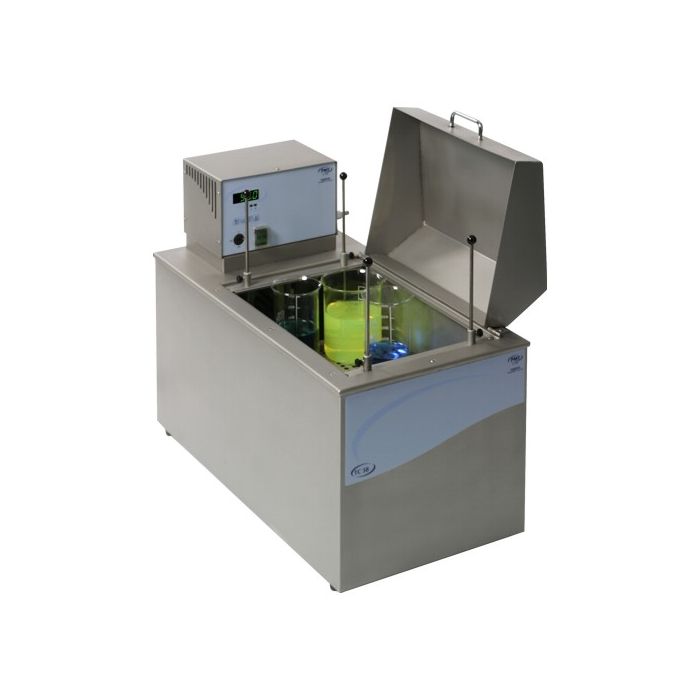

Tamson bath/circulator TC58 with a bath volume of 58L. Temperature can be set from ambient up to 250 °C. Temperature stability is better than +/- 0.02 K. Bath opening 420 x 275 mm. Bath is made from stainless steel. The TC58 is used for precise temperature control offers high reliability for use under rough circumstances
Bath Temperature Accuracy
0.02 K
Bath Volume
58 litre
Weight
40.0000
Minimum Temperature
20 C
Maximum Temperature
250 C
Details
Tamson bath/circulator TC58 with a bath volume of 58L. Temperature can be set from ambient up to 250 °C. Temperature stability is better than +/- 0.02 K. Bath opening 420 x 275 mm. Bath is made from stainless steel. The TC58 is used for precise temperature control offers high reliability for use under rough circumstances
The insulation of the bath and electronic design result in a stable working temperature of ± 0.02°C. The set point temperature can be set in steps of 0.1°C in the range of 0°C up to 250°C (32°F..482°F). The accuracy on the display is displayed in 0.1°C. However the controller has an internal accuracy of 0.01°C. This two decimal-readout also is available from the RS232 and the free Tamcom software.
The temperature reading atandard is available in °C, on request in °F. These baths can be operated from ambient up to 250°C (41°F..482°F). Due to the "self-heating" of the stirring mechanism and when using a top lid, the minimum temperature lies approximately 5°C above the ambient temperature. When using the standard built-in cooling coil the minimum operating temperature lies approximately ±5°C above the temperature of the cooling liquid circulating inside the cooling coil. Minimum working temperature when using external cooling lies around 10°C. Lower temperatures generate problems with built up of condensate in the inner insulation of the bath.
The bath conforms to CE regulation. It is further equipped with a mechanical resettable safety thermostat and a drain to empty the bath.
