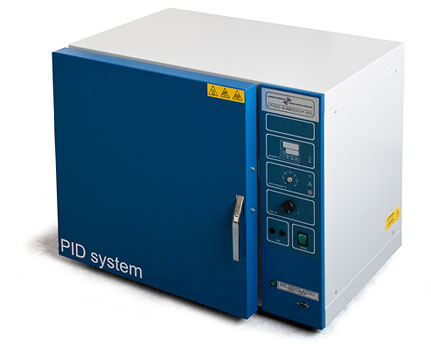

Art. LT/DO-248000/F: Drying Oven
Art. LT/DO-248000/N: Natural Ventilation Oven
Professional natural or forced ventilation oven suitable for all thermostatic applications where a specific precision is needed.
Outer body in steel coated in epoxy anti-acid paint.
Inner structure in stainless steel AISI 304 with rounded corners.
Double insulation door with silicone seal to prevent heat loss.
Thermal insulation with mineral fibre.
Digital display P.I.D. thermostat to ensure good stability.
Temperature range from +5°C ambient to +280°C, model from 40 to 120 litres.
Temperature range from +5°C ambient to +200°C, model from 8 to 20 litres.
Accuracy to ± 1.5°C at +105°C, model from 40 to 120 litres forced ventilation.
Accuracy to ± 2°C at +105°C, model from 40 to 120 litres natural ventilation.
Accuracy to ± 1°C at +105°C model from 8 to 20 litres.
Display precision ±1°C.
For further protection the oven is equipped with visual alarm security thermostat, range from +50°C to +280°C and manual resetting.
Steel shelves adjustable in height.
Panel commands isolated.
Heating elements are not in contact with internal chamber but are in an ante-chamber to guarantee uniform heating.
Illuminated two phase main switch.
Built according to C.E.I. normative (66-5).
2 class, DIN 12880.
Power supply
115 Vac 50/60 Hz
220 Vac 50/60 Hz
Accessories
LAB-248000/1: tempered inspection glass window 200 × 200 mm
LAB-248000/2: internal light with temperature protection glass and switch
LAB-248000/3: internal shelves made in stainless steel
CE marked
