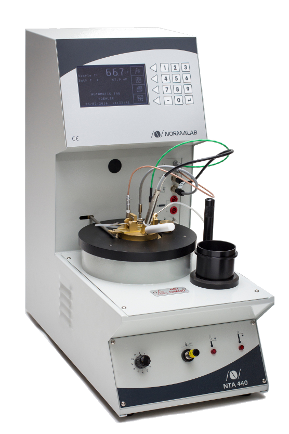

NTA 440
Automatic flash point by TAG closed tester
STANDARDS
ASTM D56
IP 304
SCOPE
Standard Test Method for Flash Point by Tag Closed Cup Tester
MAIN CHARACTERSTICS
- Test temperature range: for flash point below 93°C
- Double Flash detection by ionisation ring and thermocouple
- Data Storage: 200 results
- Quick access to calibration parameters
- Auto diagnostic
- Liquid bath as per standard method
- Optional low gas cartridge to work in all types of environments
- Gas ignition
- Automatic Gas cut-off at the end of the test
- Optional cryostat required for samples having a FP below 40°C
- RS232C output
- Data acquisition Supervisor Software included possibility to collect the data for a LIMS
SCOPE OF DELIVERY
NTA 440 delivered ready for use with :
- REF 40390 Printer paper for Seiko DPU 414
- REF 40386 Seiko DPU 414
- REF 40614 Pt 100 probe
- REF 40610 Cup without cover
- REF 40347 Cover without probe for NTA 440
- REF 40612 Detection cable
- REF 60214 Insulated tubing for cryostat + 1 m of gas tubing
OPTIONAL ACCESSORIES
- Cryostat for test below 40°C
- REF 22216 Cryostat for test < 40°C range -40°C…+200°C : 0,02°C
- REF 40483 Gas cartridge case and 1x 100 ml gas cartridge + (REF 40484)
- REF 40613 Electric ignitor
CONSUMABLES
- REF 40600 NTA 440 for use on AC 230V – 50Hz – 4A
- REF 40600/115V NTA 440 for use on AC 115V - 50/60Hz - 4A
- (W) 260x (D) 535x (H) 500 mm (±20 kg)
