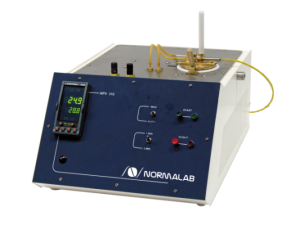

NPV 310
STANDARDS
ASTM D3828
IP 303
ISO 3679
SCOPE
Standard Test Methods for Flash point and small Scale closed cup Tester
MAIN CHARACTERSTICS
- Temperature Range: from -30°C to 300°C
- Optional external cooling system for low temperature
- 2 methods at choice
- Method with controlled heating rate of 6°C/min and flame presentation until flash point detection
- Standards equilibrium method.
- Automatic heating slope 6°C per min
- PID regulator
- Digital display
- Sample stabilisation 60 or 120 sec digital control
- Gas and Electric ignition
- Automatic flame presentation
- Auto flash point detection by thermocouple
- Temperature measurement by Pt probe with resolution at 1/10°C
- Programmable high temperature safety
SCOPE OF DELIVERY
NPV 310 Ready for use with :
- REF 942694 Cover
- REF 942695 Thermocouple
- REF 942692 Electric igniter
- REF 942697 1 m of gas tubing
- Loading syringes to be ordered separately
NECESSARY ACCESSORIES
- REF 21604 Pack of 100 loading syringes 2 ml
- REF 25826 Pack of 100 loading syringes 5 ml
OPTIONAL ACCESSORIES
- REF 23203 Cryostat - TLC 30 - 5 litres (-30 to +60°C/±.0.05) for flashpoint until -20°C (GO / NO GGO)
- REF 23204 Cryostat-l TLC 40- 14 liters(-40 to +20°C ±.0,05) for flashpoint until -30°C (GO / NO GO)
- REF 22001 Insulated tubing (1 m) for connection between tester and cryostat
- REF 26075 Mercury thermometer for calibration purposes
- REF 40483 Gas cartridge case and 1x 90 ml gas cartridge (ref 40484)
- REF 9417444 Pair of gloves
CONSUMABLES
- REF 40484 100 ml Gas cartridge for optional case
- REF 942693 Pack of 1000 protective aluminium sheets (single use) + cup fixing tool
- REF 942692 Electric igniter
ORDERING INFORMATION
- REF 942692 NPV 310 Gas and electric ignitions
- REF 942691 NPV 310 Gas only
- REF 942691 / 115V on request
- NPV 310 For use on AC 230V, 50/60 Hz - 5A
- (W) 320x (D) 260x (H)460 mm (± 12 kg)
NPV 310
