NPM 221

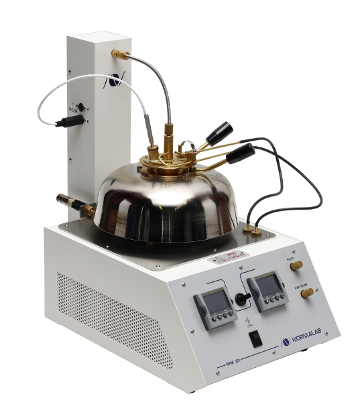

Half automated model Pensky-Martens flash tester
STANDARDS
ASTM D93
EN 22719
IP 34
NFM 07019
ISO 2719
DIN 51758
GBT 261
SCOPE
Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester
MAIN CHARACTERSTICS
- Method A and B - by QUICK SWITCH
- Electric heater
- Automatic heating slope
- Automatic stirring with rotating speed according to the standard method (A & B)
- Temperature range from ambient to 360°C
- Temperature measurement by Pt 100 Probe
- Cooling by compressed air
- Gas ignition ( Manual Deeping)
- Manual FP Detection
- Temperature safety by thermostat
- Heating power: 1200 W
SCOPE OF DELIVERY
NPM221 delivered ready for use with :
- REF 9411930 Cup for NPM 120 & 121, 220 & 221
- REF 9411931 Cover with opening mechanism without probe
- REF 9417908 Pt 100 probe (70x3 mm)
- REF 942698 Stirring connection cable (12cm)
OPTIONAL ACCESSORIES
- REF 9411932 Stainless steel support for cup and cover (to be ordered with new unit only)
- REF 9417444 Pair of safety gloves
CONSUMABLE
- REF 941609 Gas tubing (1 m) - 2/4 mm dia
ORDERING INFORMATION
- REF 942619 NPM 221 For use on AC 230V – 50/60Hz - 6 A
- (W) 350x (D) 250x (H) 380 mm (± 10 kg)
NPM 221
