Standards
ASTM D1478, ASTM D4693, ASTM D4950
CE marked
Subject
ASTM D1478 - Low-temperature Torque of Ball Bearing Grease.
This test method covers the determination of the extent to which a grease retards the rotation of a slow-speed ball bearing by measuring starting and running torques at low temperatures, below -20°C (0°F).
ASTM D4693 - Low-temperature Torque of Grease Lubricated Wheel Bearings.
This test method determines the extent to which a test grease retards the rotation of a specially-manufactured, spring-loaded, automotive-type wheel bearing assembly when subjected to low temperatures. Torque values, calculated from restraining-force determinations, are a measure of the viscous resistance of the grease. This test method was developed with greases giving torques of less than 35 N·m at 40°C.
ASTM D4950 - Classification and Specification of Automotive Service Greases.
This specification covers lubricating greases suitable for the periodic relubrication of chassis systems and wheel bearings of passenger cars, trucks, and other vehicles.

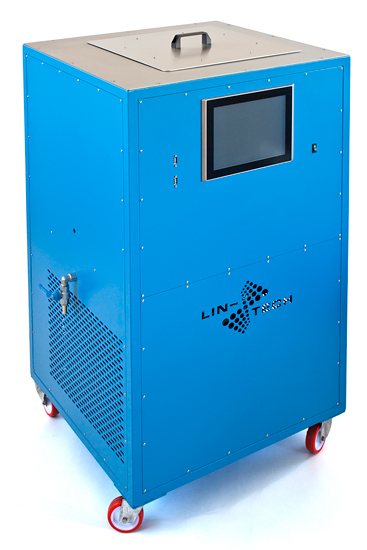

Steel structure painted with epoxy material
Test cabin able to grant a working temperature of –75 °C
Geared motor and Ball-cage rotating at 1 rpm
Inspection door made in stainless steel with high insulation material
Internal double cabin made in stainless steel with high diffusion and homogeneity cooling system
Double stage refrigerating unit without CFC gases located in the bottom part of the structure
Digital dynamometer
Set for analysis available in accessories list

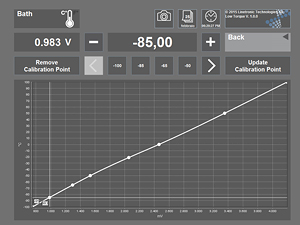

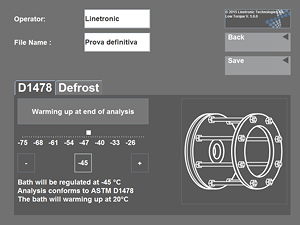

Managed by a touch screen panel pc using LabLink operating software running on Windows basis with following characteristic:
TFT/LCD 12”
40 Gb HD
1024 × 768 resolution and 16 M colors
2 × USB ports
Able to store more than 60'000 analysis
Power cable and user manual
Power supply available 220 Vac 50/60 Hz or 115 Vac 50/60 Hz to be specified in case of PO
NEWLAB 410
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.
Accessories
LAB-214500/4693: mechanical mounting kit for performing analyzes according to ASTM D4693 standard including bearings for running tests
LAB-214500/1478: mechanical mounting kit for performing analyzes according to ASTM D1478 standard including bearings for running tests
Consumables
LAB-102-140/1478: ball bearing ASTM D1478
LAB-102-140/4693: ASTM D4693 tapered bearings, pack of 2 pieces
Spare Parts
LAB-140-001: PT100 stainless steel
LAB-102-145: torque sensor
LAB-102-146: toothed belt
LAB-102-147: heating elements, pack of 2 pieces
LAB-102-144: torque wire
Dimensions
width 70 cm
depth 65 cm
height 150 cm
Weight
240 kg
