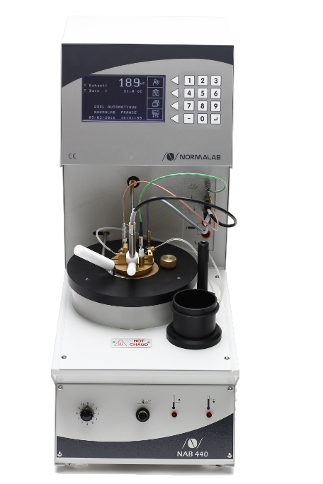

NAB 440
Automatic Abel flash point tester
STANDARDS
IP 170
DIN 51755
NFT 66009
ISO 13736
SCOPE
Petroleum products and other liquids – Determination of flash point-Abel closed cup method
MAIN CHARACTERSTICS
- Test Temperature Range: -30°C to 110°C
- Double Flash point detection by ionisation ring and thermocouple
- Data Storage: 200 results
- Quick access to calibration parameters
- Auto diagnostic
- Gas electric and ignition
- Optional low gas cartridge to work in all types of environments
- Automatic Gas cut-off at the end of the test
- Optional cryostat required for samples having a FP below 40°C
- RS232C output
- Data acquisition Supervisor Software included possibility to collect the data for a LIMS
SCOPE OF DELIVERY
NAB 440 delivered ready for use with :
- REF 41301 Abel cup
- REF 41303 Abel cover with ionisation ring
- REF 60214 Insulated tubing for Cryostat
- REF 40386 Seiko DPU 414
- REF 41306 Stirrer flexible
- REF 40613 Electric ignitor
- REF 41309 Detection cable thermocouple
- REF 41310 Pt 100 probe
- 1 m of gas tubing
OPTIONAL ACCESSORIES
Cryostat for test below 40°C
- REF 23203 TLC 30 (-30 to +60°C ±0.05)
- REF 23204 TLC 40 (-40 to + 20 °C ±0.05)
- REF 40483 Gas cartridge case and 1x 100 ml gas cartridge
CONSUMABLES
- REF 40613 Electric ignitor for flame lightening
- REF 40484 100 ml Gas cartridge for optional case
- REF 40390 Roll of Seiko DPU 414 printer paper
- REF 14110 Tube for propane gas 6 x12 mm (10 m)
ORDERING INFORMATION
- REF 41300 NAB 440 For use on AC 230V – 50/60Hz - 4A
- REF 41300/115V NAB 440 For use on AC 115V 50/60 Hz
- (W) 260x (D) 535x (H) 500 mm (±20 kg)
