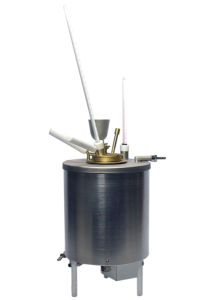

NAB 110
Manual abel flash point appartus, with electric heater and gas test Jet
STANDARDS
IP 170
DIN 51755
NFT 66009
ISO 13736
SCOPE
Petroleum products and other liquids – Determination of flash point-Abel closed cup method
MAIN CHARACTERSTICS
- A traditional coppers water bath
- Oil cup
- Gas test jet
- Manual stirrer
- Thermometers
- Electric heater
SCOPE OF DELIVERY
NAB 110 delivered ready for use with :
- REF 941604 Cup
- REF 9416041 Lid shutter and stirrer with gas test jet
- REF 21227 IP thermometer (74 C)
- REF 21228 IP thermometer (75 C)
- REF 11493 ASTM Thermometer (6C)
OPTIONAL ACCESSORIES
- Cryostat for test below 40°C
- REF 23203 TLC 30 (-30 to +60°C ±0.05)
- REF 23204 TLC 40 (-40 to + 20 °C ±0.05)
- REF 941143 Energy regulator
- REF 941597 Dry ice machine
- REF 21229 IP thermometer (2 C)
ORDERING INFORMATION
- REF 941601 NAB 110 For use on AC 230V, 50 Hz, 2A
- (W)250x (D) 280x (H) 420 mm (±7 kg)
NAB 110
