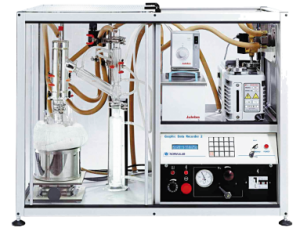

VDIST Classic
Half-automated D 1160 Instrument
STANDARDS
ASTM D1160
ISO 6616
DIN 51567
SCOPE
Standard Test Method for Distillation of Petroleum Products at Reduced Pressure
MAIN CHARACTERSTICS
- Test Temperature Range: Ambient to 400°C
- Computerized regulation of temperature and pressure (1 to 50 mmHg)
- Sample identification
- Data is recorded and printed: temperature, Volume, pressure, AET,
- flowrate
- The operator only follows the volume in receiver and adjusts the heating power
- Operator protection by panels
- Nitrogen degassing at end of test or by watchdog button in case of fire
- Half-automated D1160 instrument is delivered complete
- Built on a dedicated frame including : water circulator, vacuum pump, printing dump of distillation report according to standard.
SCOPE OF DELIVERY
- REF 41604 Set of glassware including :
- REF 41609 Gas tubing diam. 2/4 mm (1 m)
- REF 41611 200 ml cylinder for vacuum distillation
- REF 41612 Distillation column and condenser
- REF 41613 Dual cold trap
- REF 11092 Clip for spherical grinding
- REF 21694 Heating controller
- REF 41606 Heating block and mantle (1000 W)
- REF 9411304 Vacuum/temperature adapter (top of column)
- REF 9411301 Distillation column "O" ring
- REF 9411311 Seal gasket for Pt 100
- REF 9411306 Set of vacuum pipes
- REF 19011 Light recovery cylinder (12 ml)
- REF 9417906 Pt 100 probe GDR (170 x 2 mm)
- REF 11495 ASTM thermometer (8 C), range from -2 to + 400°C
OPTIONAL ACCESSORIES
- REF 941597 Dry ice machine
- REF 23478 Quartz flask with THERMOWELL (500 ml)
- REF 9411305 Distillation column for Quartz flask
ORDERING INFORMATION
- REF 9411280 VDIST CLASSIC For use on AC 230 V, 50 Hz, 16 A
- REF 9411280/ 115V on request
- (W) 1000x (D) 600x (H) 800 mm (±105 kg)
