TLC90-14 230V-50Hz​

TLC90-14 230V-50Hz

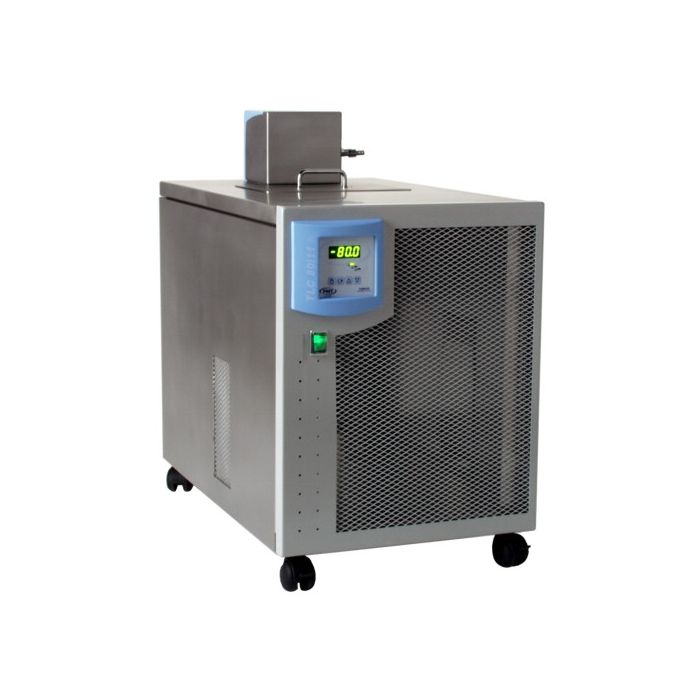

Tamson Low Temperature Circulator TLC90-14 with a temperature range from -90°C up to 20°C. The bath volume is 14 litres and the bath opening measures 290 x 200 mm. The device offers external circulation.



Bath Temperature Accuracy

0.05 K



Bath Volume

14 litre



Weight

100.0000



Minimum Temperature

-90°C



Maximum Temperature

20°C



Details

Tamson Low Temperature Circulator TLC90-14 with a temperature range from -90°C up to 20°C, 230V-50Hz. The bath volume is 14 litres and the bath opening measures 290 x 200 mm. Device is delivered with a lid.The drain located at the back provides easy removal of the bath fluid. Low fluid level is detected electronically.



The used cooling system is ozone friendly, so it doesn't contain any CFK/HCFK gas.



With the compressor running continuously, the fluid temperature is regulated through an electronic controlled heater.



The bath conforms to CE regulation. It also is equipped with a mechanical resettable safety thermostat.



The working temperature range is -80°C to ambient (-112°F .. ambient)

The set point can be set in steps of 0.1°C. The overall system accuracy is 0.05°C.



A pressure pump provides circulation in the bath or via an external circuit. The pressure of the pump is 300 mBar at 10 litres per minute.
