TLC40-14 230V-60Hz
TLC40-14 230V-60Hz

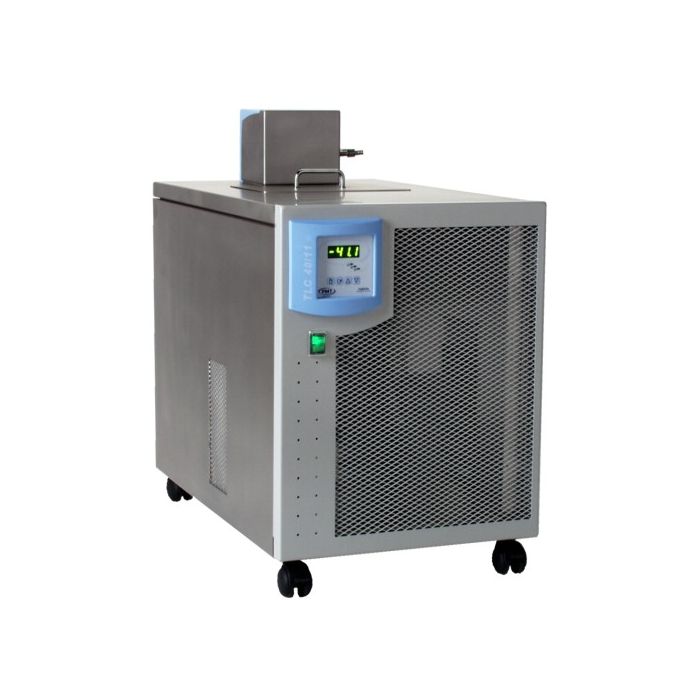

Tamson Low Temperature Circulator TLC40-14 with a temperature range from -40°C up to 20°C, 230V-60Hz. The bath volume is 14 litres and the bath opening measures 290 x 200 mm. Device offers external circulation.
Bath Temperature Accuracy
0.05°K
Bath Volume
14 litre
Bath Height
770 mm
Weight
65.0000
Minimum Temperature
-40°C
Maximum Temperature
20°C
Details
The TLC40 can be used for multiple heat removal purposes such as replacement of tap water, fast cool down or ASTM CFPP testing. The bath volume is 14 litres.
The used cooling system is ozone friendly and doesnt contain any CFK/HCFK gas.
With the compressor running continuously, the fluid temperature is regulated through an electronic controlled heater.
The TLC40 operates from -40°C to +20°C (-40°F..68°F) and optional extended minimum temperature: -45°C .. +20°C / -49°F .. + 68°F
The set point is adjustable in steps of 0.1°C.
A pressure pump provides circulation in the bath or via an external circuit. The pump pressure is 300 mBar and 7 ltrs per minute (no counter pressure).
The bath conforms to CE regulations. It also is equipped with a mechanical adjustable and resettable safety thermostat to guarantee safe around the clock operation.
