TLC40-14 230V-50Hz​

TLC40-14 230V-50Hz

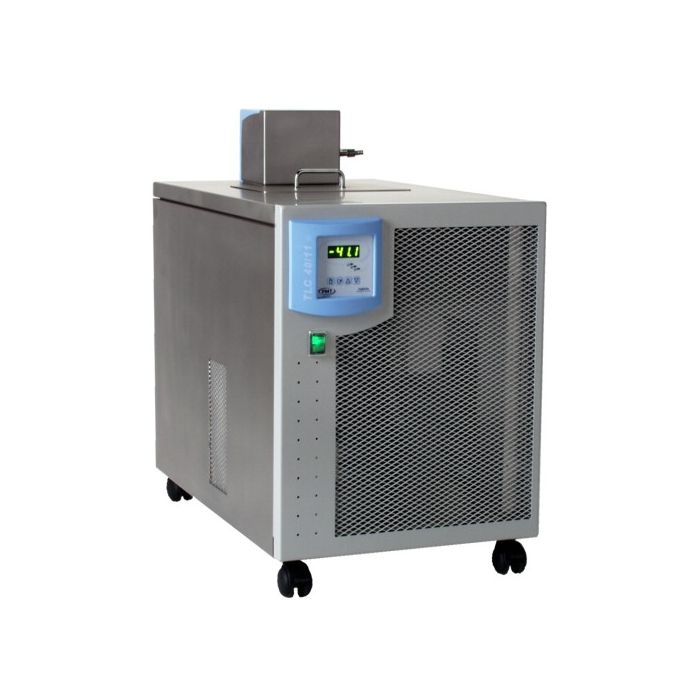

Tamson Low Temperature Circulator TLC40-14 with a temperature range from -40°C up to 20°C. The bath volume is 14 litres and the bath opening measures 290 x 200 mm. Device offers external circulation.



Bath Temperature Accuracy

0.05°K



Bath Volume

14 litre



Bath Height

770 mm



Weight

65.0000



Minimum Temperature

-40°C



Maximum Temperature

20°C



Details

The TLC40 can be used for multiple heat removal purposes such as replacement of tap water, fast cool down or ASTM CFPP testing. The bath volume is 14 litres.



The used cooling system is ozone friendly and doesn’t contain any CFK/HCFK gas.



With the compressor running continuously, the fluid temperature is regulated through an electronic controlled heater.



The TLC40 operates from -40°C to +20°C (-40°F..68°F) and optional extended minimum temperature: -45°C .. +20°C / -49°F .. + 68°F

The set point is adjustable in steps of 0.1°C.



A pressure pump provides circulation in the bath or via an external circuit. The pump pressure is 300 mBar and 7 ltrs per minute (no counter pressure).
