ASTM D2500 | Cloud Point
JPI-5S-56-99
Chinese GB-11145
Chinese SH/T0732
About
The two most recognized applications of the SB+2 are the Scanning Brookfield Technique (ASTM D5133 & D7110) and the Brookfield Viscosity Test (ASTM D2983). The use of the patented SimAir™ Test Cell allows the SB+2 to be held at a constant temperature during the 16-hour soak period of the Brookfield D2983 test. This provides greater versatility, increased sample through-put and improved precision over air baths and programmable liquid baths.
The versatility of the SB+2 bath stems from its broad cooling range, both manual and automatic temperature control, the incorporation of a viewing window and five easily replaceable bath covers (Insert Modules). The bath now serves as a cooling source for seven different low-temperature test methods -- making it a cost effective instrument for demanding lab schedules.
Features & Benefits
- Versatile liquid bath for analyzing lubricants and fluids meeting numerous low temperature test methods.
- Easily replaceable Insert Module for each test.
- Programmable & Manual bath temperature controls.
- Self-contained refrigeration system capable of cooling to -70°C.
- Generates the Gelation Index & Gelation Index Temperature according to ASTM D5133 and D7110 methods.
- Designed for use with patented SimAir™ Test Cells for Brookfield D2983 testing.
- Ideal for low-temperature work with fresh, sooted, or highly oxidized oils, ATFs, and fuels.
Reference Oils
GIR-150 | Gelation Index Reference Oil
LNP-5 | Low Temperature Newtonian Oil
For a complete listing of part numbers and available container sizes of SB+2 Reference Oils, please review the Tannas Reference Oils & Catalysts Parts List.
Visit our Certified Reference Materials page to download SDS sheets or Oil Certificates.
Parts & Accessories
Scanning Brookfield (D5133 & D7110) Components:

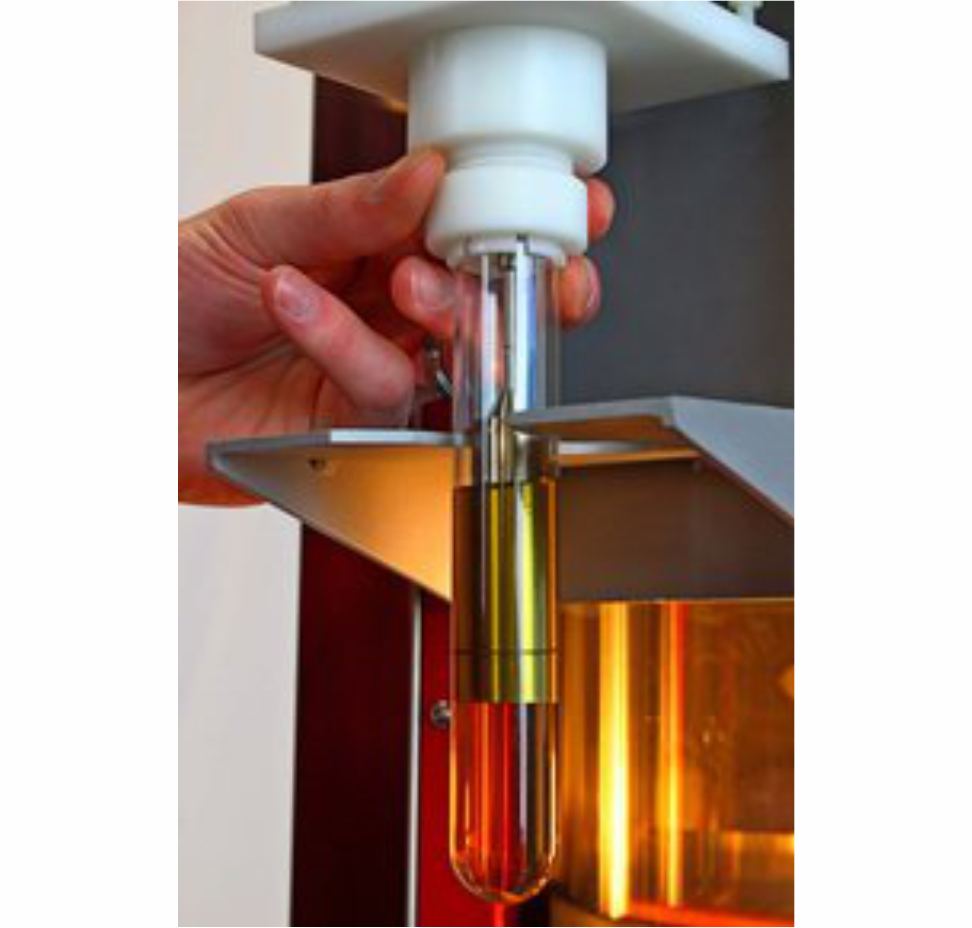

100898: SBT™ Viscometer Assembly (TAV-III)
100750: Tannas SBT2010 Automation Package
100030: SBT™ Rotor
100055: SBT™ Glass Stator
100031: Female Hook
100032: Male Hook
040013: LNP-5 Calibration Fluid (1.89 L)
030007: GIR-150, Gelation Index Reference Oil (0.94 L)
Additional Insert Modules:

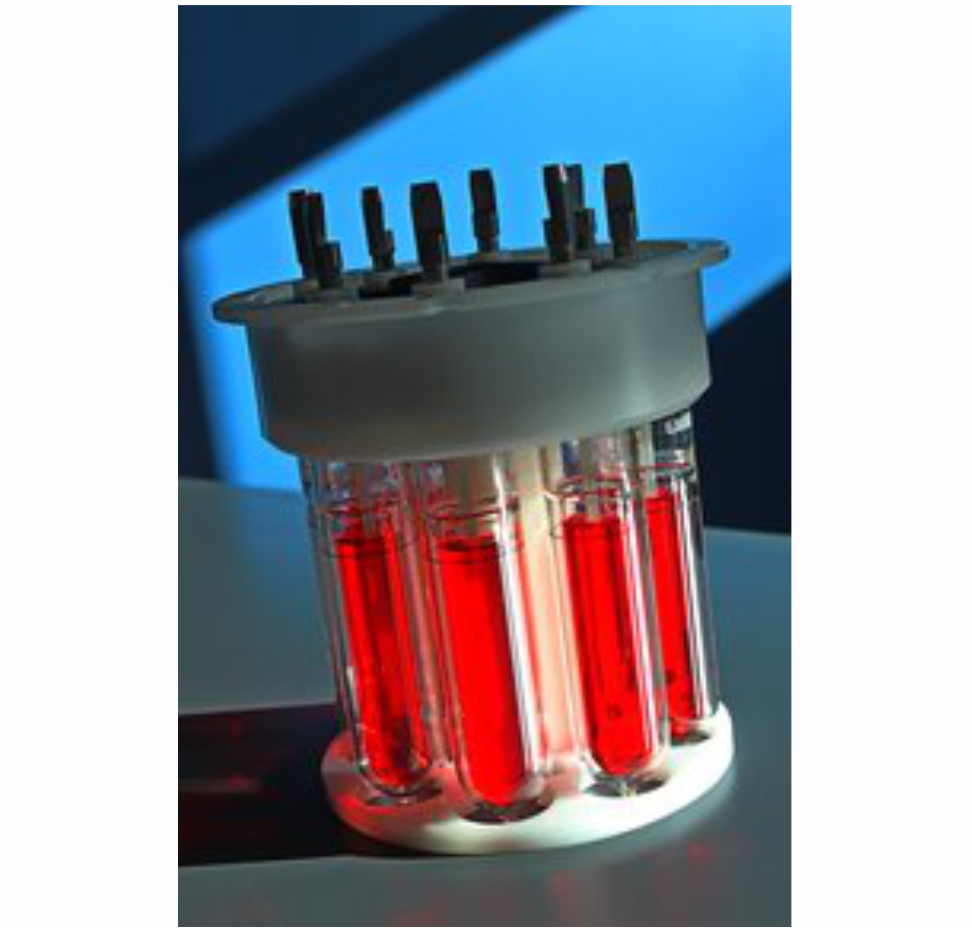

100170: Brookfield Carousel Insert Assembly (ASTM D2983)

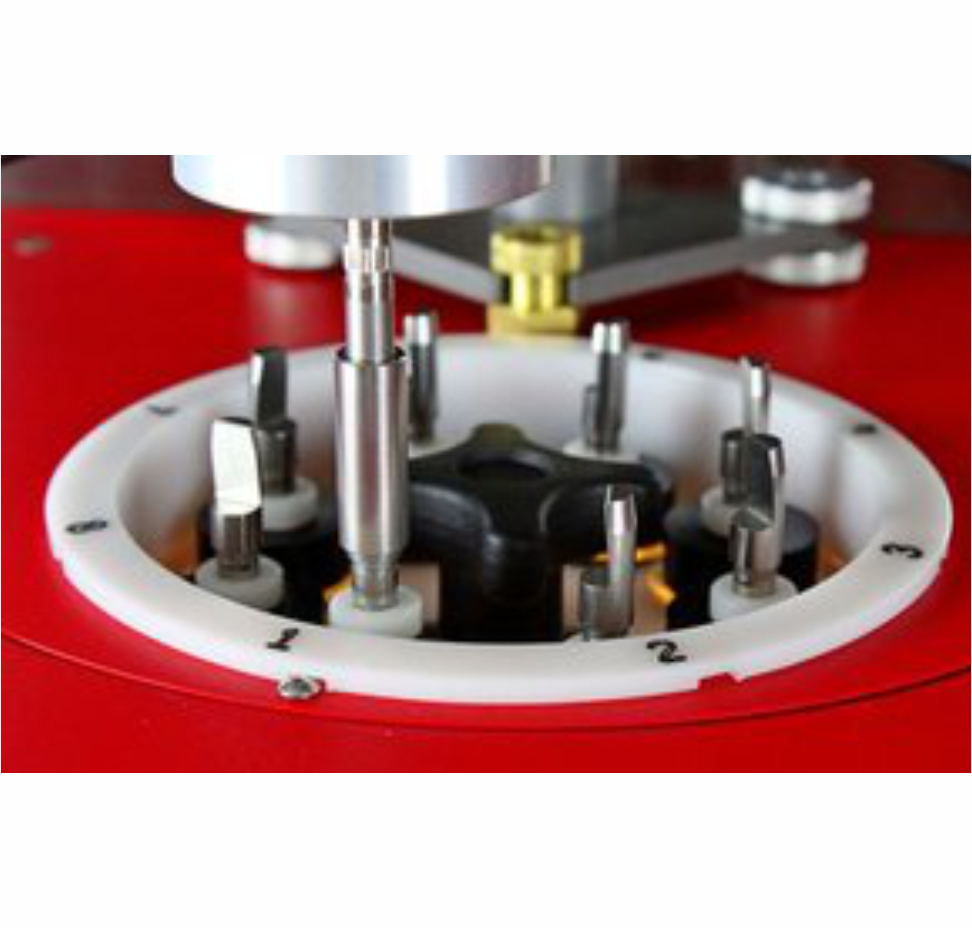

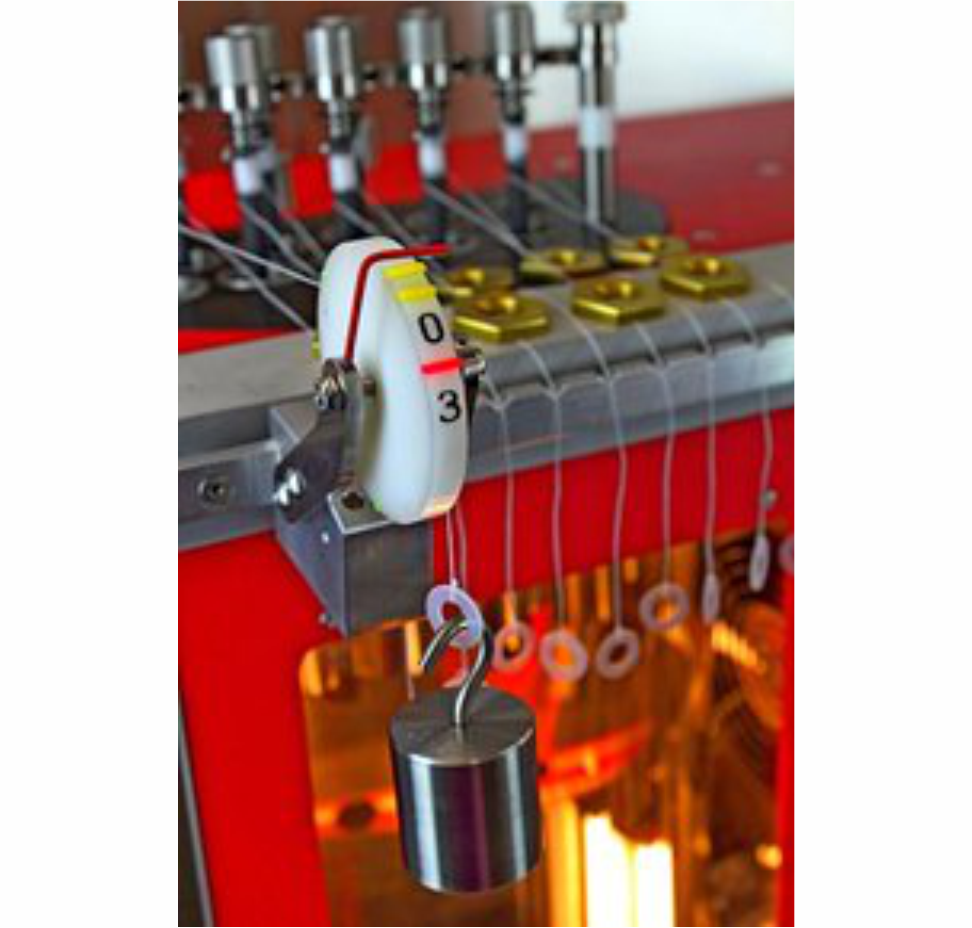

350400: MRV-TP1 Module Assembly (ASTM D4684)
100203: Low Temperature Kinematics Module (ASTM D445)

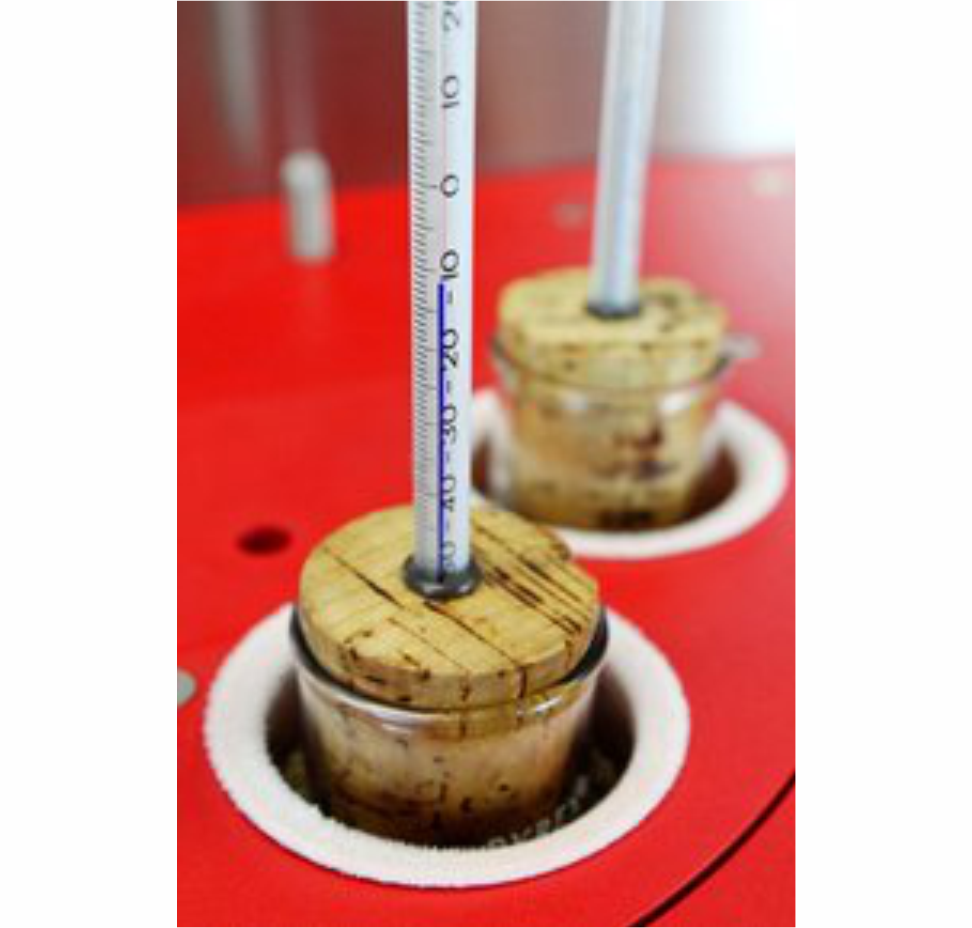

100202: Pour Point/Stable Pour Point (ASTM D97/FTM 203C)
Components & Accessories:
100235: Tannas D2983 SimAir™ Test Cell Assembly
100236: SimAir™ Glass Stator
100019: Brookfield LVDV1 M Digital Viscometer
100005: Brookfield LV-DV2T Viscometer
170033: Spindle Storage Block
170028: Test Cell Holding Rack
350190: Desiccant Assembly
550175: Desiccant Media
100863: Tannas Pre-Heater (110 V)
100856: Tannas Pre-Heater (220 V)
970137: Bath Lamp - LED
100015: RTD Assembly - 9”

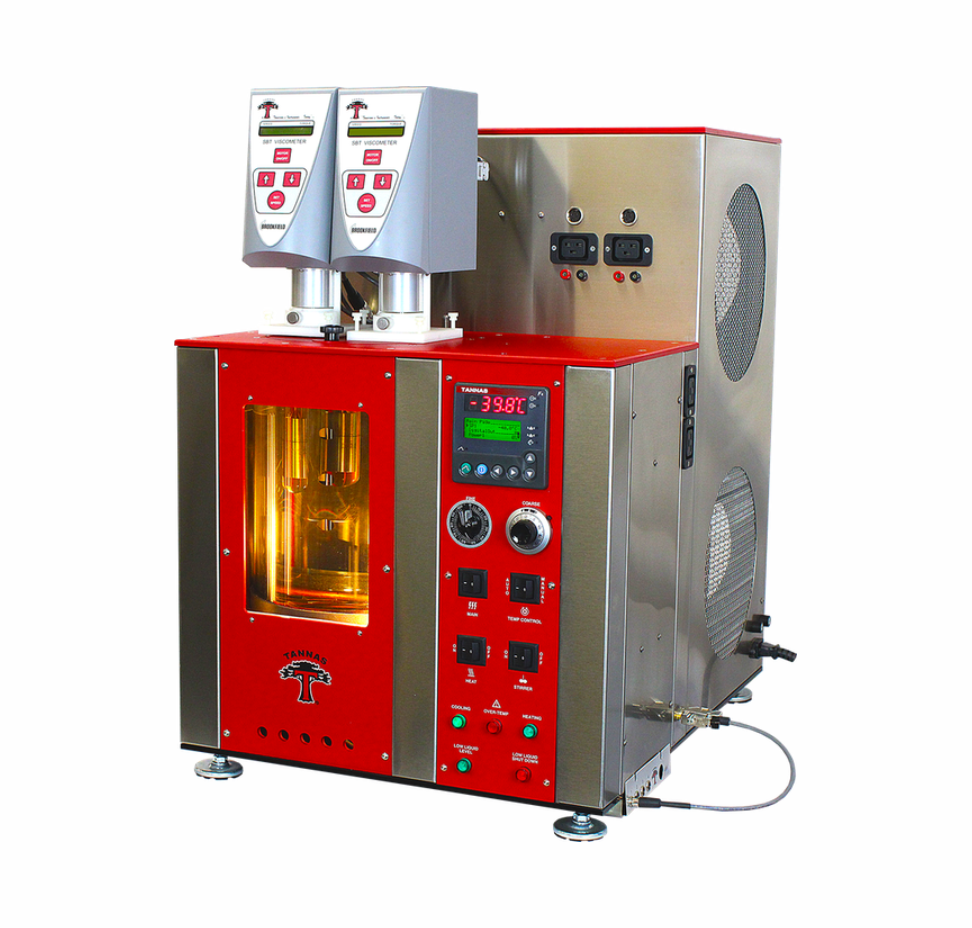

SB+2 | Scanning Brookfield Plus Two
