ASTM D36
IP 58-B
Softening Point of Bitumen (Ring and Ball Apparatus)
This test method covers the determination of the softening point of bitumen in the range from 30 to 157°C (86 to 315°F) using the ring and ball apparatus immersed in distilled water (30 to 80°C), USP glycerine (above 80 to 157°C), or ethylene glycol (30 to 110°C).
Art. LT/RB-217000-B/M

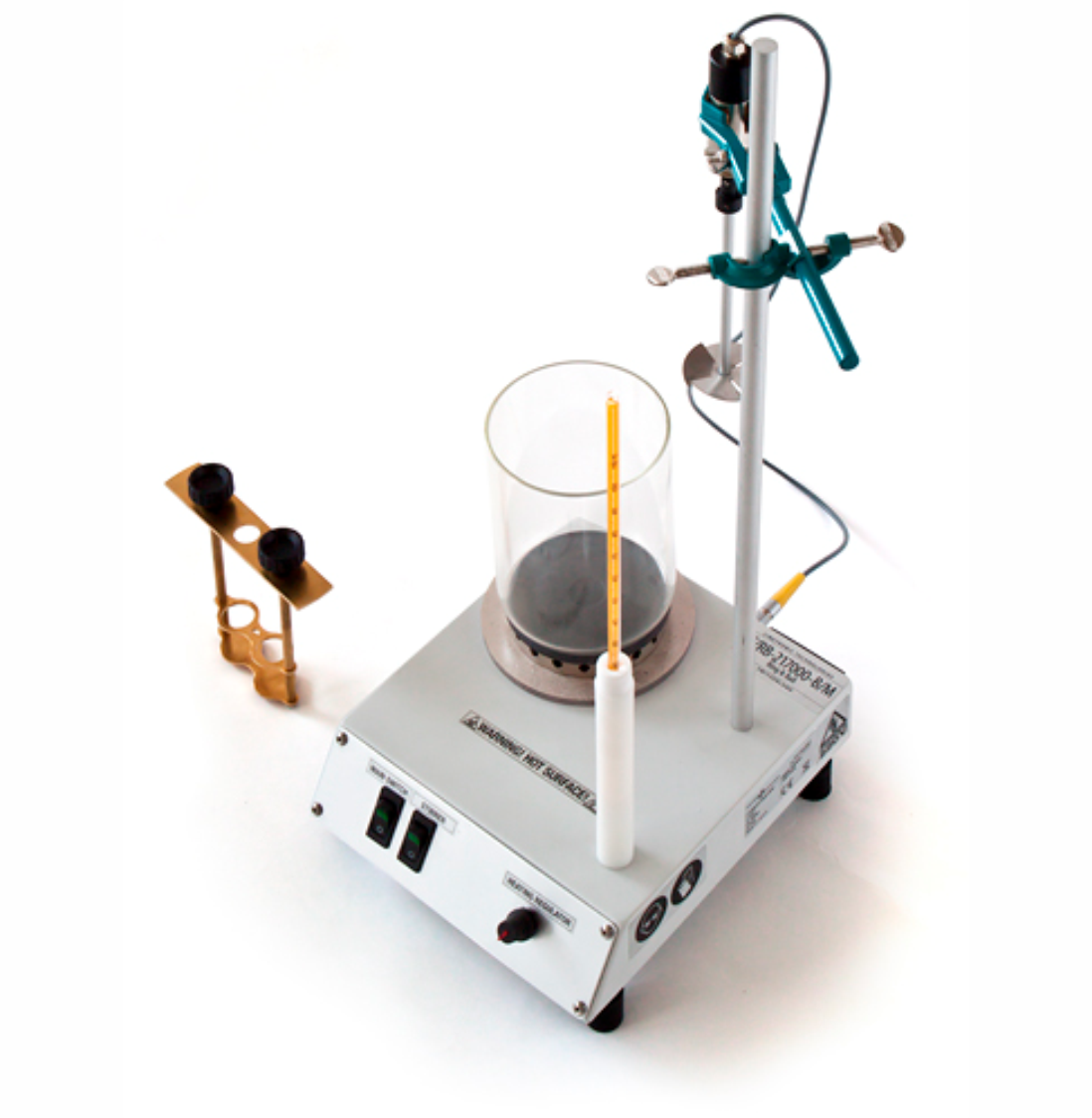

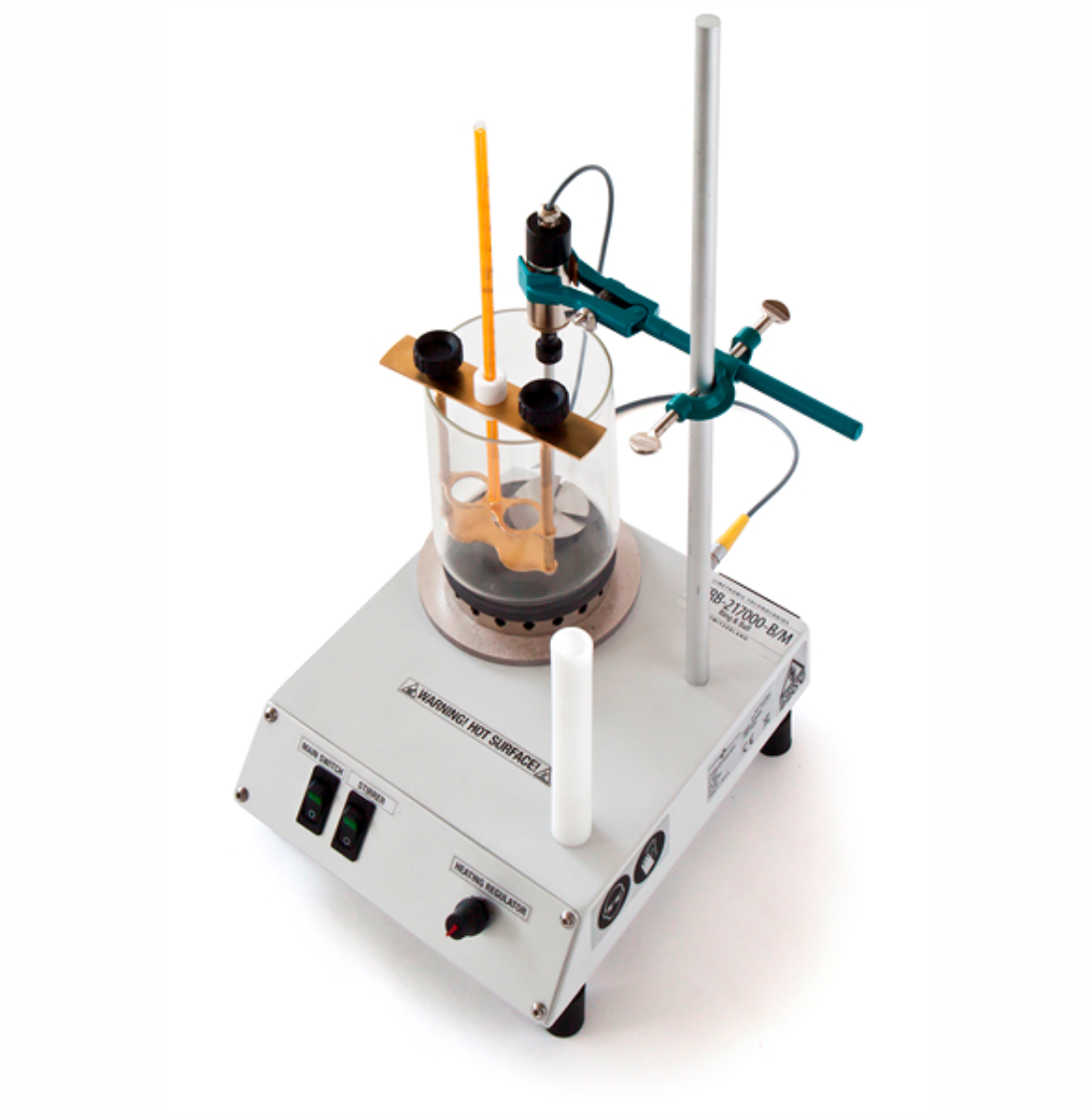

Ring and Ball Apparatus ASTM D36
Pyrex® jar ∅ 85 × 130 mm
Two-places brass cage adjustable in height
2 hardened steel balls ∅ 9.5 mm
2 rings with collar for centring the balls
Heating device unit and motor stirrer
Power Supply
220Vac 50/60 Hz
Dimensions
cm 40 × 40 × 60
Weight
kg 5
Accessories
LAB-100-005: h.r. gloves
LAB-102-170/1: ring and collar IP-1
LAB-102-170/2: ring and collar IP-2
LAB-102-170/3: rings IP-3
T-AS15C: thermometer ASTM 15C - IP 60C
T-AS15F: thermometer ASTM 15F
T-AS16C: thermometer ASTM 16C - IP 61C
T-AS16F: thermometer ASTM 16F
Spare Parts

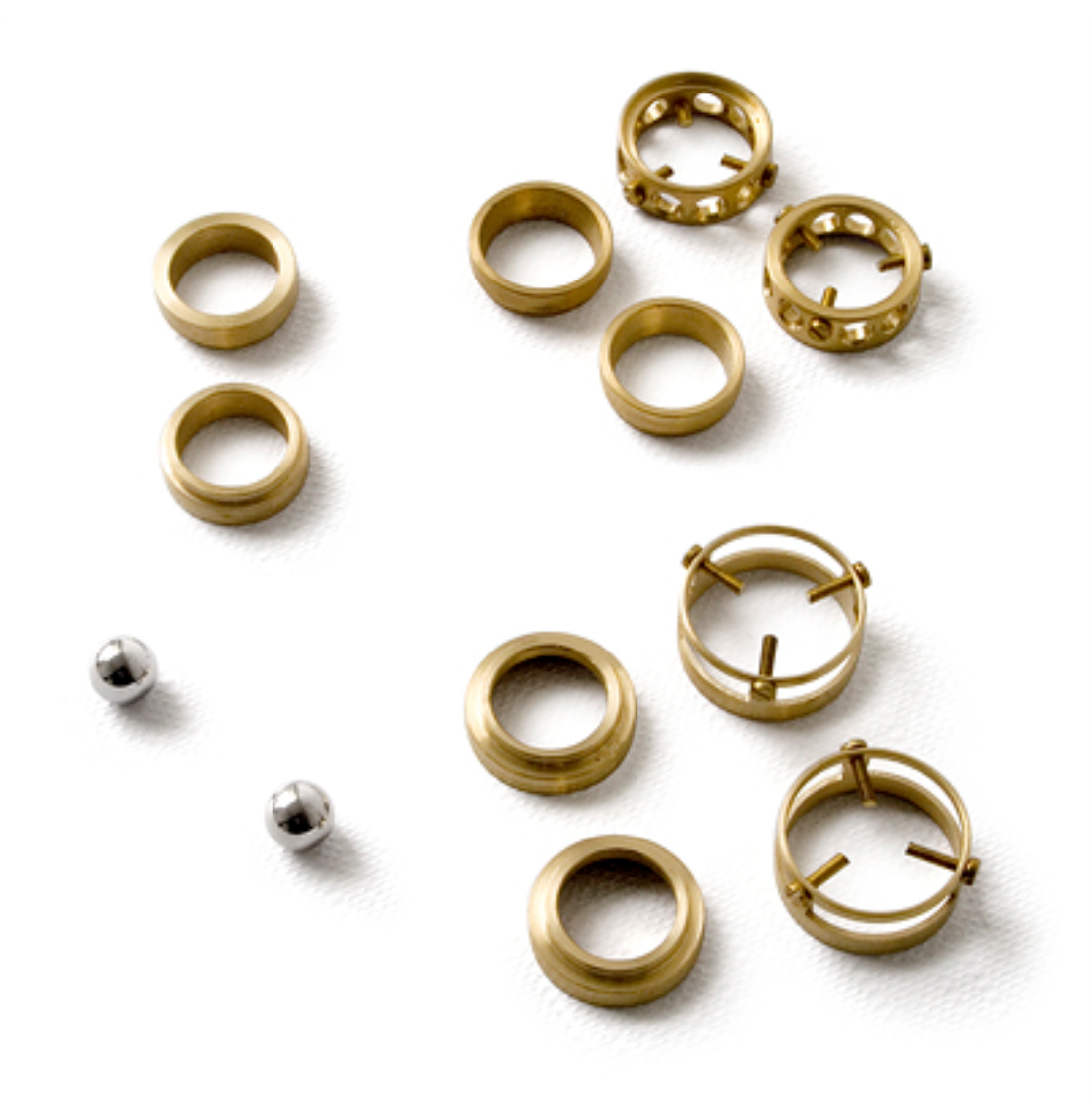

LAB-102-170/B: ring and ball set
LAB-102-171: test balls
LAB-102-172: Pyrex® jar
LAB-102-173: cage
LAB-102-174: rings ASTM
LAB-102-175: collar ASTM
CE marked
Ring & Ball
