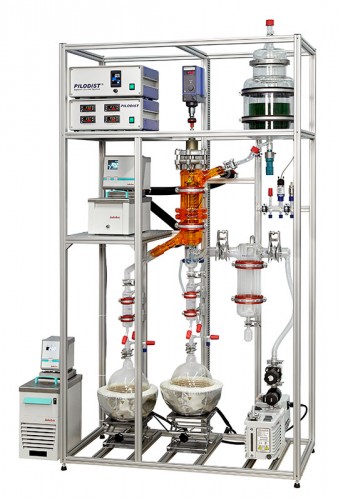

PILODIST SP 500
Short-Path Evaporator
Short-path evaporator apparatus for lab-scale or pilot operation.
Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous short-path distillation or gentle concentration of thermally sensible products. Suited for laboratory or pilot operation. The pilot operation data and experimental values can be transferred to bigger systems.
The standard system uses PTFE rolling wiper elements. Other wiper elements are available.
Technical Data
Material
borosilicate glass
Evaporator surface
5 dm², short path
Operating temperature
up to 250°C C
Operating pressure
1.0 up to 0.001 mbar
Throughput
approx. 0.5-10 l/h
Mains Supply
208-250 V, 50 Hz (60 Hz upon request)
Dimensions (w x h x d)
approx. 1.20 x 1.80 x 0.60 m
PILODIST SP 500
