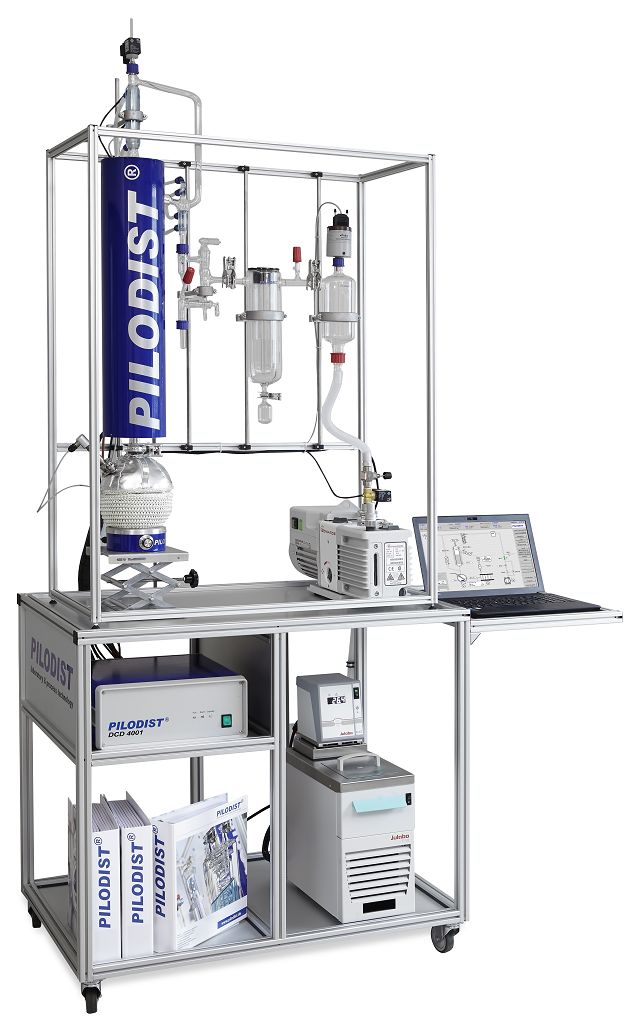

PILODIST HRS 500 C
Semi-micro distillation
PILODIST® manufactures the world famous concentric-tube-column (CTC), an especially versatile distillation column with highest separation efficiency.

The special advantages of the concentric-tube-column are:
extremely low pressure drop
highest separation efficiency
minimum hold-up
all-glass construction
static design (no rotating parts inside the column)
The separation efficiency in the concentric-tube-column is based on the physical principle of the mass transfer betwen vertically rising vapour and the spirally trickling film of liquid in a concentric annular gap made of glass. The column consists of two concentrically melted-in, especially selected and calibrated glass tubes.
Technical Data
Flask sizes
50, 100, 250 ml
Charge quantity
10 – 150 ml
Operating temperature
20° – 250° C
Operating pressure
atm … 0.1 mbar depending on vaccum access
Separation efficiency
up to 90 theoretical plates
Mains Supply
208 – 260 V, 50 Hz (60 Hz upon request)
Dimensions (w x h x d)
approx. 1.20 x 1.40 x 0.50 m
PILODIST HRS 500 C
