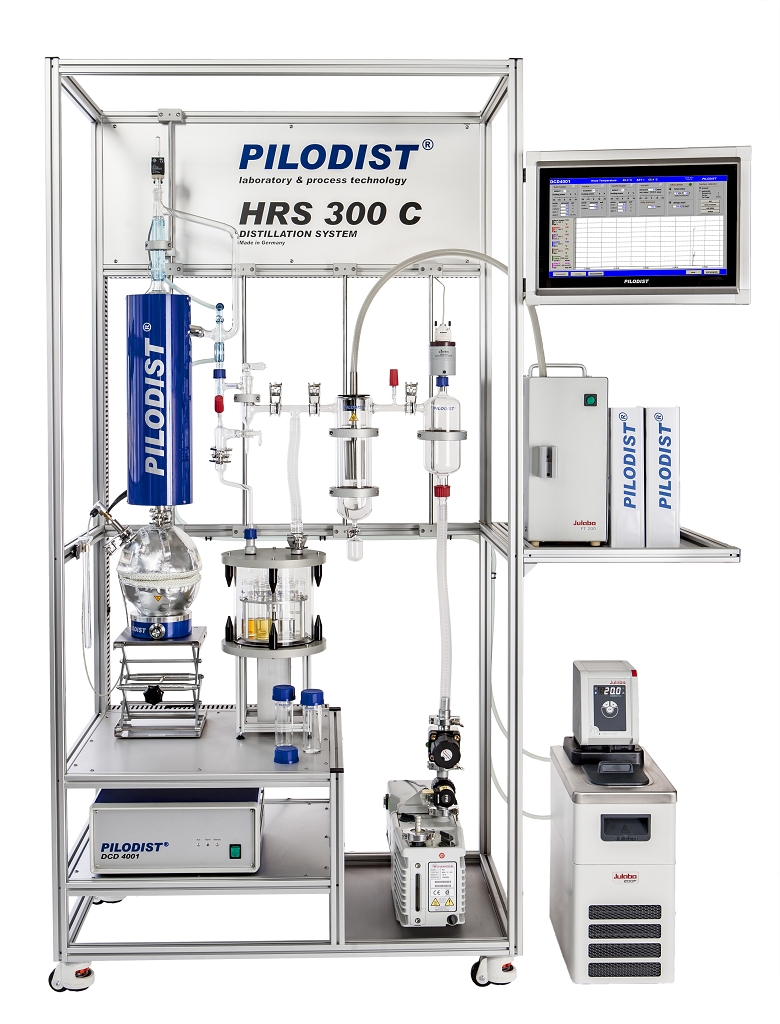

PILODIST HRS 300 C
Especially versatile unit with highest separation efficiency and up-to-date processor control with most modern IP 65 PILODIST touchscreen monitor, mobile framework and automatic fraction collector.
The special advantages of the concentric-tube-column are:
- extremely low pressure drop
- highest separation efficiency
- minimum hold-up
- all-glass construction
- static design (no rotating parts inside the column)
The separation efficiency in the concentric-tube-column is based on the physical principle of the mass transfer between vertically rising vapour and the spirally trickling film of liquid in a concentric annular gap made of glass. The column consists of two concentrically melted-in, especially selected and calibrated glass tubes.
Technical Data
Flask sizes
50, 100, 250 ml
Charge quantity
up to 500 ml
Operating temperature
20° – 350° C
Operating pressure
atm … < 1 mbar
Separation efficiency
approx. 40 theoretical plates
Mains Supply
230 V, 50 Hz (60 Hz upon request)
PILODIST HRS 300 C
