Standards
IP 577
DEF STAN 91-91
ISO 4406
NAS 1638
SAE AS 4059
GJB 420
GOST 17216
NAVAIR 01-1A-17
PAMAS S40 AVTUR

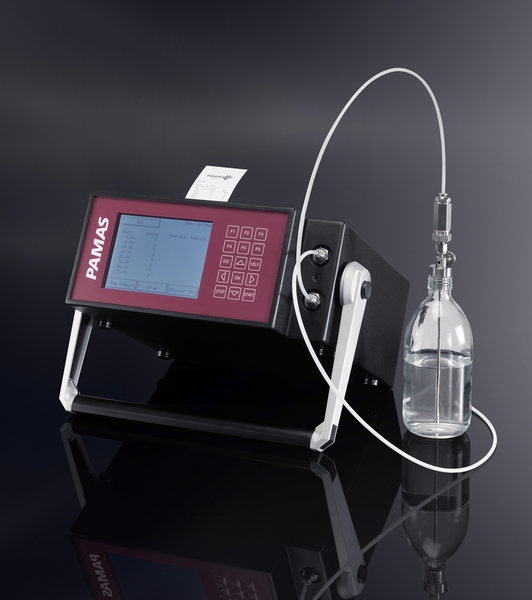

The PAMAS S40 AVTUR is a portable particle counter for the analysis of turbine fuels, petrol and diesel. The S40 AVTUR has its own device-specific analysis method that has derived from the Energy Institute London, namely IP 577. The S40 AVTUR instrument fully complies with DEFSTAN 91-091 and IP PM FA. A wear resistant ceramic piston pump guarantees a constant flow. With a simple-to-use touch screen user interface, operation is easy and intuitive. The system is equipped with an integrated battery for more than three hours operation and a data storage of more than 4000 measurements. The samples can be taken from bottles without pressure or pressurised up to 6 bar. Real time sample measurement data can be printed during the analysis and also be revisited and printed at anytime at a later date.
Applications
- Online measurements at pressure-less systems
- Offline measurement using sample bottle (laboratory mode)
- Long-term analysis
- Bypass filtration monitoring
- Filter verification
Particle sensor: PAMAS HCB-LD-50/50
Max. particle concentration: 24.000 particles per ml at 7.8 % coincidence
Nominal flow rate: 25 ml/min
Calibration according to ISO 4406 in the size classes > 4 µm(c), > 6 µm(c) and > 14 µm(c)
Software
Download S40: used to transfer stored measurements to a PC
PAMAS CMDM: Condition Monitoring Data Manager
PAMAS PMA: Particle Measuring and Analysing Software
PAMAS S40 AVTUR
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.
