Standards
Display shows particle numbers,cleanliness classes, and size. Printout according to many international standards
ISO 4406
NAS 1638
SAE AS 4059
GJB 420
GOST 17216
NAVAIR 01-1A-17
PAMAS S40

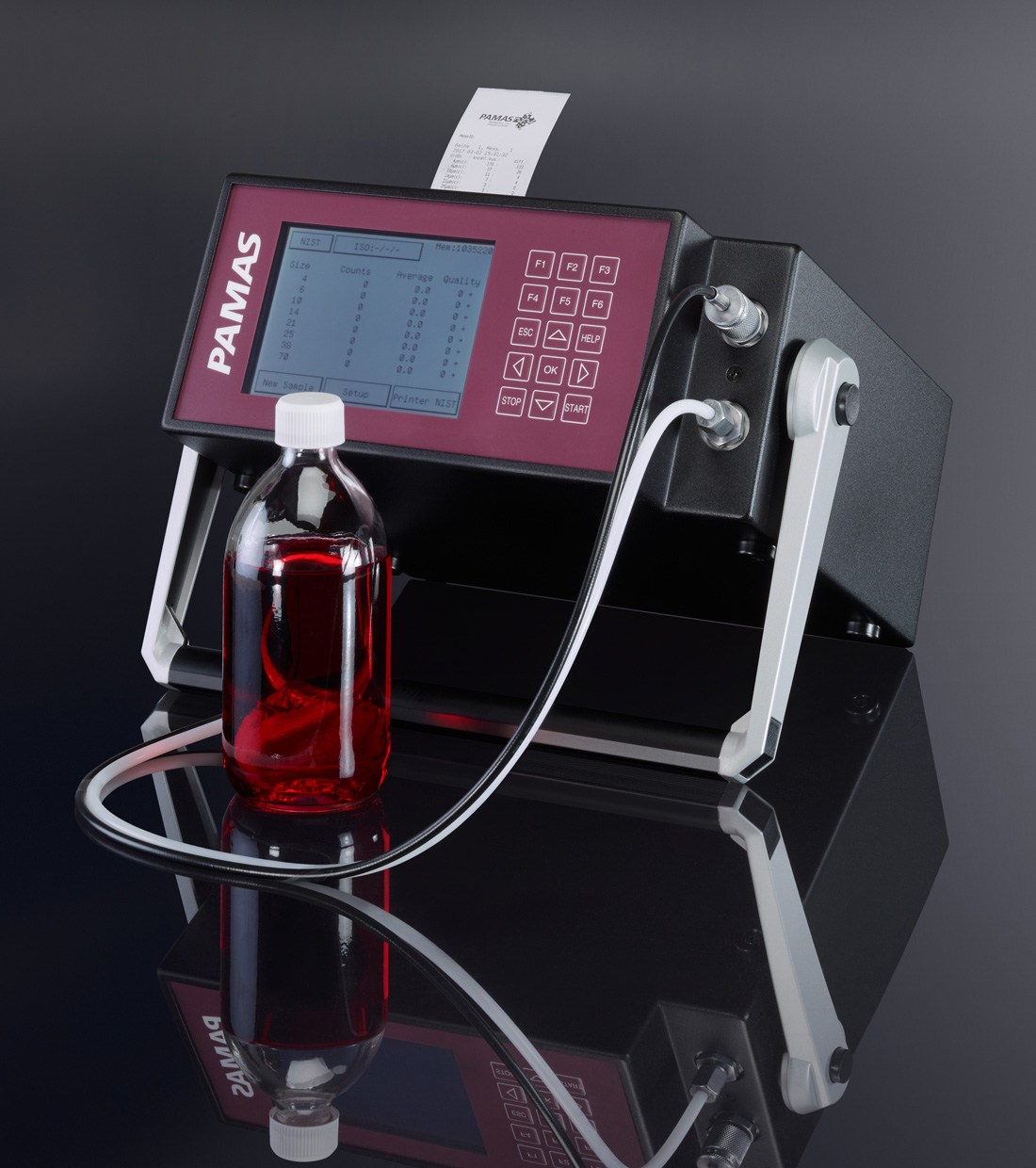

The PAMAS S40 is a portable particle counting system for oil-based liquids like hydraulic and lubricating oil. A wear resistant ceramic piston pump guarantees a constant flow. With a simple-to-use touch screen user interface, operation is easy and intuitive. The system is equipped with an integrated battery for up to three hours operation and a data storage of up to 4000 measurements. The system can be used for batch sampling and online measurements. Additional accessories are available.
Sample input
Low pressure: 0 to 6 bar - batch and online mode
High pressure: 3 to 420 bar - online mode
Viscosity
Up to 200 cSt in batch sampling mode
Pressurised sample up to 350 cSt
Particle sensor: PAMAS HCB-LD-50/50
Max. particle concentration: 24.000 particles per ml at 7.8 % coincidence
Nominal flow rate: 25 ml/min
- Calibration according to ISO 11171; Classification as per ISO 4406 or SAE AS 4059, etc.; Size range: 4 µm(c) to 70 µm(c); 8 size channels: 4, 6, 10, 14, 21, 25, 38, 70 µm(c)
- Calibration according to ISO 4402; Classification as per NAS 1638 or GOST 17216, etc.; Size range: 2 µm – 100 µm; 8 size channels: 2, 5, 10, 15, 20, 25, 50, 100 µm
Software
Download S40: used to transfer stored measurements to a PC
PAMAS CMDM: Condition Monitoring Data Management
PAMAS PMA: Particle Measuring and Analysing Software
Option: Phosphate-ester compatible system
This system is compatible with phosphate-ester based hydraulic liquids, mainly used in commercial airplane hydraulic systems.
Option: S40 system for lube oil applications
Sample input: low pressure: 0 to max. 6 bar - batch & online mode.
For oil applications according to ISO 4406, the standard particle counter PAMAS S40 can also be integrated in the rugged case PAMAS GO for harsh environments.
PAMAS S40
