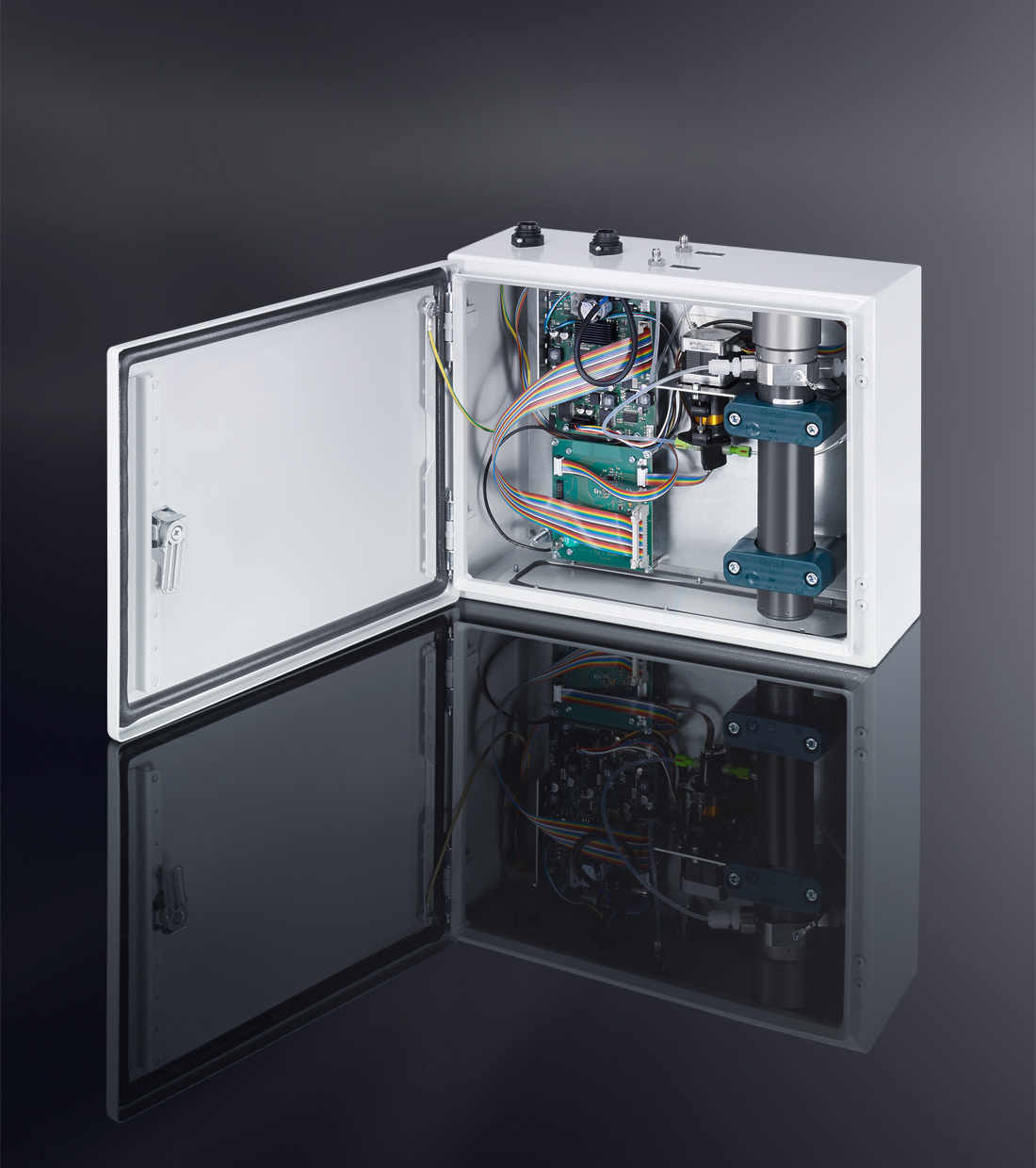

PAMAS OLS4031
The online particle counter PAMAS OLS4031 emerged from the standard particle counter PAMAS S4031. The standard shell is made of coated steel. For Phosphat-Ester applications, the PAMAS OLS4031 is manufactured with a special stainless steel shell that protects the housing from corrosive liquids. The integrated stepper-motor-driven pump guarantees a constant flow. The PAMAS OLS4031 online particle counter is equipped with 32 size channels.
Applications
The PAMAS OLS4031 is used in monitoring facilities systems in the aircraft industry, in test rigs for parts cleanliness and in production test lines.
Sample input
Low pressure (standard version): 0 to 6 bar - online mode
High pressure (available on request): 3 to 420 bar - online mode
Sample viscosity
Up to 200 cSt
Pressurised up to 350 cSt
Volumetric particle sensor PAMAS HCB-LD-50/50
Nominal flow rate: 25 ml/min, maximum particle concentration: 24.000 p/ml at a coincidence quote of 7.8%
Software
PAMAS PMA: Particle Measuring and Analysing Software
PAMAS OLS4031
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.
