ASTM D942
DIN 51808
IP 142
Oxidation Stability of Lubricating Greases by the Oxygen Pressure Vessel Method
This test method determines resistance of lubricating greases to oxidation when stored statically in an oxygen atmosphere in a sealed system at an elevated temperature under conditions of test.
Art. LT/OS-202000/M
Oxidation Cylinder ASTM D942
- Polished stainless steel 18/8
- Capacity 185 ml
- Oxygen inlet stem connected to a cover through a suspension flange of the bath
- O-ring gasket
- Screw-top closure
- Tested to 180 psi
- 1/4" joint for pressure gauge connection
Oxidation Stability of Greases Oxygen Pressure Vessel Method
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.
Art. LT/OS-202000-B/M
Oxidation Stability Bath for ASTM D942 - IP 142
- Structures in stainless steel inox with double wall insulation
- Cover with two holes for the passage of the bombs
- Heater in stainless steel
- Digital thermoregulator with over-temperature alarm and probe PT100
- Safety thermostat with warning lamp
- Working temperatures: ambient … 150°C
- Power supply 220 Vac ± 10% 50/60 Hz
Accessories
- LT/AB-2470/BCA200: analytical balance
- capacity: 210 g
- readability: 0.1 mg
- linearity: ± 0.2 mg
- repeatability: ± 0.05 mg
- response time: 6/10 sec.
- pan diameter: 80 mm
- calibration: internal
- LAB-100-371/50: silicone oil, can of 25 litres
- LAB-102-001-DPS-RF-300: digital manometer with record functions
- autonomous battery powered instrument with digital display designed to record pressure and temperature over long periods
- application 0 … 300 psi
- resolution 1 psi
- supply 3,6 V lithium battery, type SL-760
- all standard instruments are calibrated in bar; the pressure can be indicated in the following units: bar, mbar/hPa, kPa, MPa, PSI, kp/cm2, (m)H2O
- supplied with UBS converter
- LAB-102-013: junction O2
- LAB-102-021: sample dish in Pyrex®, ∅ 41 mm, pack of 5 pcs.
- LAB-102-022: pressure gauge scale 0-160 psi, div. 0.5

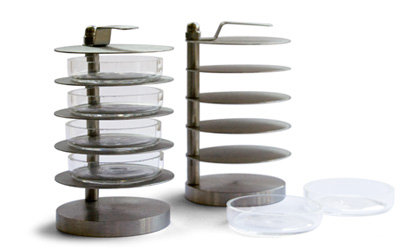

- LAB-102-025: dish holder, 5 places in stainless steel
- T-AS22C: thermometer ASTM 22C
- T-AS22F: thermometer ASTM 22F
Spare parts for oxidation pressure vessel
LAB-102-021: sample dish in Pyrex®, ∅ 41 mm, pack of 5
Spare parts for bath
LAB-110-012: heater
LAB-160-014: digital thermoregulator
LAB-140-001: probe PT100
LAB-150-015: static relay
LAB-100-371/50: silicone oil can of 25 litres
CE marked
