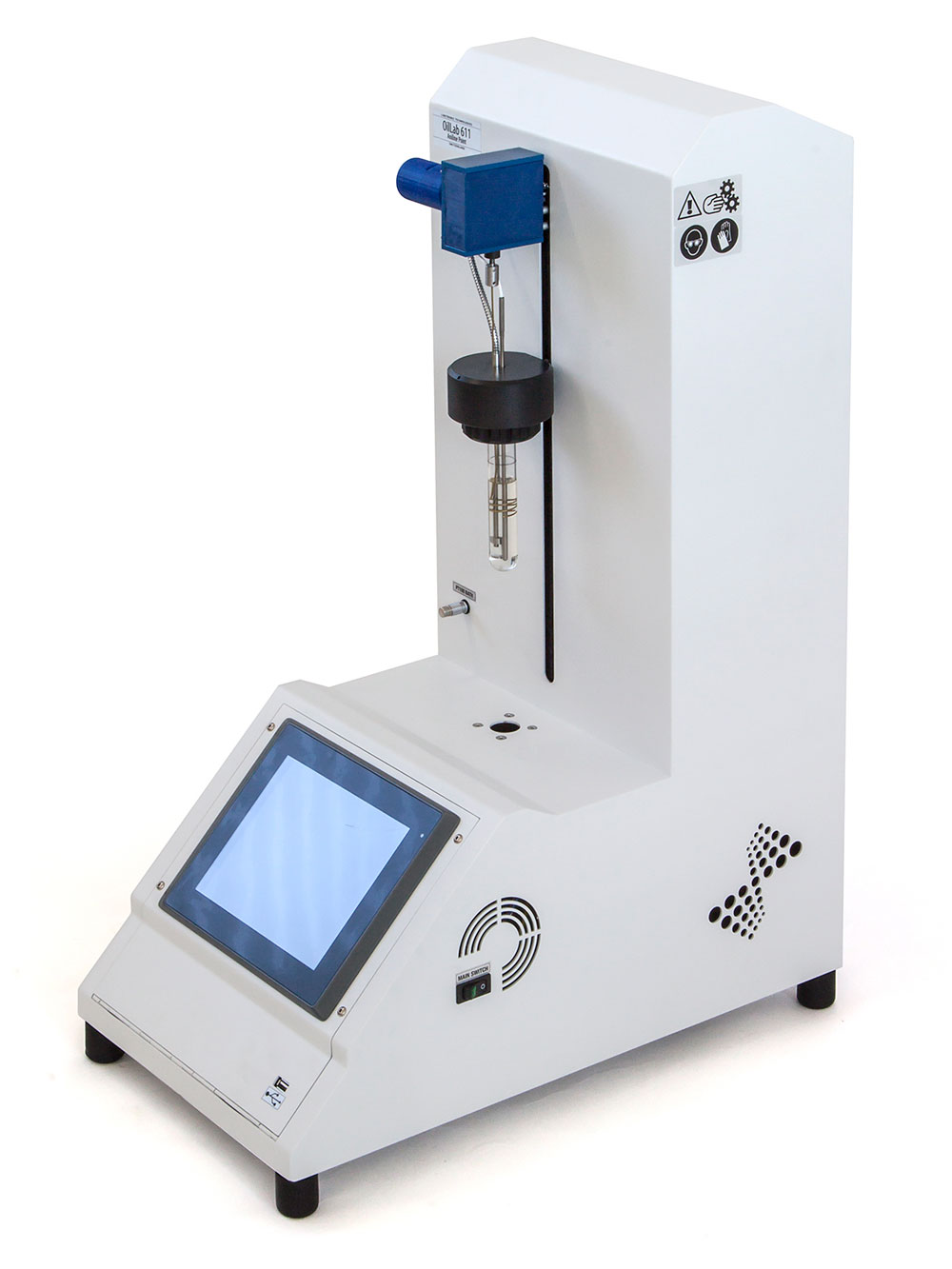

OilLab 611 | Aniline Point | Crea Petrochemical

ASTM D611-A-B-E

IP 2-A-B-E

CE marked

Subject

Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents.

Method A is suitable for transparent samples with an initial boiling point above room temperature and where the aniline point is below the bubble point and above the solidification point of the aniline-sample mixture.

Method B, a thin-film method, is suitable for samples too dark for testing by Method A.

Main Features

Automatic unit.
Automatic movement of the head up and down.
Built in cooling system up to -15°C: not need external chiller, not need liquid medium.
High temperature up to 160°C.
Heating /cooling dry bath for more safety.
Removable glass cell for cleaning.
Not aniline is touched by the operator.
A small hole on the head support is used for the introduction of the aniline by syringe with luer lock (10 ml) when the glass cell with sample is already installed.
Wide 8" touch panel pc is installed with dedicated managing software Aniline programs as for standard heating and cooling profile and costums procedure available.
Temperature probe fiber optic and mirror are inside the sample and not outside the glassware.
Automatic stirrer made of brass, 3 coils.
Solid structure painted with epoxy products.
Double detection system able to detect dark and clear samples.
Gently motorized stirrer system.
Electric heather controlled by PID system.
On-board cooling system with liquid peltier exchanger.
Managed by a touch screen panel PC:
TFT/LCD 8”
40 Gb HD
Resolution 1024 × 768 and 16 M colours
2 × USB Ports for connecting pen drive and printer
The dedicated software manages:
The bath temperatures by means of a PT100 sensor class A that can be displayed in °C / °F, including the over temperature safety alarm
Dedicated software for real time monitoring and recording that includes:
Graph creation in real time during the test
Invalid test indication
Export of files in xls / pdf / jpg format
Calibration up to 100 points
