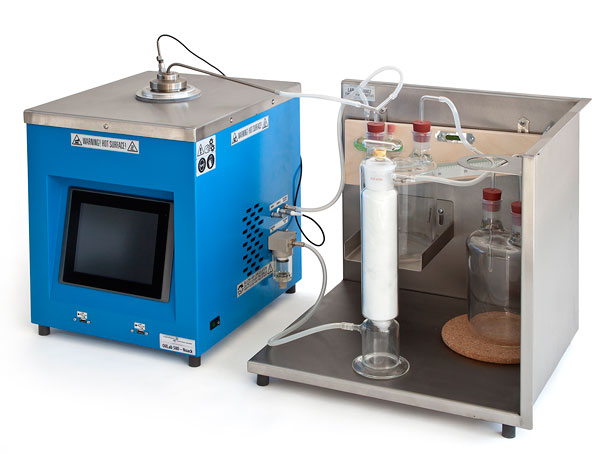

OilLab 580 | Noack | Crea Petrochemical

ASTM D5800

IP 421

CE marked

Subject

Determination of the evaporation loss of lubricating oils (particularly engine oils).

Procedure A uses the Noack evaporative tester equipment.

Procedure B uses the automated non-Woods metal Noack evaporative apparatus.

Measuring Noack Principle

A quantity of 65 grams of sample is heated to a specific temperature and maintained for 1 hour while it is enclosed in a crucible, the crucible’s cover is shaped to allow a constant vacuum of -2 mbar to remove from the crucible the evaporating portion of the sample.

At the end of the test, the sample is cooled and then reweighted: the difference, reported in percentage, represent the sample’s Evaporation Loss by the Noack

Method.

Method A: bath is controlled at 250°C.
Method B: the sample is controlled at 245.2°C.

Measuring Temperature Probe

Platinum resistance PT100 class A
Measuring Parameters
Temperatures: in °C
Testing range: +225°C to +275°C
Measuring range: 0°C … +320°C
Resolution: 0.01 °C
Accuracy: ± 0.1 °C
Repeatability / Reproducibility: according ASTM D5800 or better

Electronic regulator for automatic control of differential pressure

Differential pressure 20 mm H20, accuracy 1%

Crucible, Crucible Cover and Heating Block

Same dimensions and volume as ASTM D5800
Electrically heated new designed aluminium block, no Woods metal needing

Heating unit

Electrical resistance, 500 W

Vacuum Pump

Equipped with high resistant Kalrez valve, inlet filter to remove product residuals
Automatic electronic control system able to maintain the -2mB during the analysis
Low voltage power supply

Integrated Touch Screen Panel PC

TFT/LCD 8”
Resolution 1024 × 768, 16.2 M colours
2 USB ports for connection to an external printer and/or external PC
Storage capacity for more than 60’000 analysis
Lin-Tech operating software Lab-Link running in Windows ambient
Automatic reading of the weight suggested balance LT/B-2470/BCA500 INT- CAL

Software Features

All analytical parameters recorded

Customizable analysis parameters and methods

Customizable results report

Printable graphs and results

The software includes:

Analysis Menu

Unknow

Standard method as per ASTM / IP / ISO / EN / DIN… norms of reference
sample
Audible alarm and displayed messages at the end of the analysis and in case of errors and/or malfunctions

Diagnostic Menu

Direct access to all analog, digital, inputs and outputs
Selectable value displaying: °C / Volt

Calibration Menu

Automatic calibration of each temperature probe
Last calibration date referred to each single probe displayed and relative data printable
Display of calibration diagram
Insertion of offset values

Data Utilities

Fields for introduction of operator and product name
Archive viewer for files recall
All analysis stored in Excel® compatible format
Storage capacity for more than 60’000 analysis
LIMS compatible

Dimensions

Length 400 mm
Width 450 mm
Max. height: 450 mm

Weight

22 Kg
Electrical Supply
220V ± 15% / 50 to 60 Hz
115V ± 15% / 60 Hz

Cord cable

3 conductors flexible cable 2 m (7 feet) length with PVC sheath oil and heat resistant as per CENELEC directives

Ambient Temperature

Max 35°C
H.R. 80%

Accessories

LAB-580-1001: glassware acc. CEC L40-A-93, 1 complete set comprising 2 glass bottles 2 litres capacity, with the necessary rubber bungs, glass delivery tubes (internal Ø 4 mm) and silicone tubings
LAB-580-1002: stand for glass bottles, including inclined manometer 0 to 50 mm water and Fresenius column
LAB-580-1003: evaporation crucible
LAB-580-1009: Noack reference oil, 1 Ltr
LAB-580-0010: Noack software evaluation tools

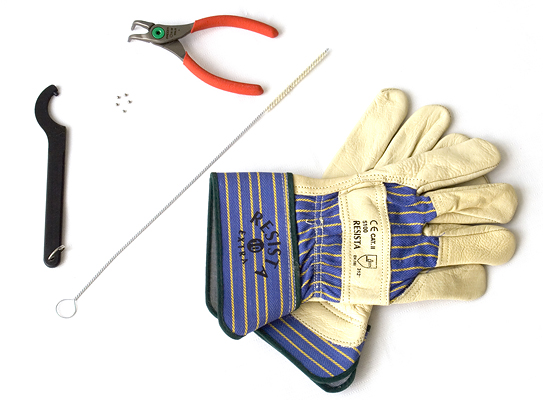

Spare parts
