ASTM D2272
ASTM D2272 - Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel (RBOT)
This test method utilizes an oxygen-pressured vessel to evaluate the oxidation stability of new and in-service Turbine oils having the same composition (base stock and additives) in the presence of water and a copper catalyst coil at 150°C.
His compact dimensions 35 × 38 × 41 cm and relative light weight only 25 Kg can assure an easy handling and find space above each table.
Automatic Monitoring system
Automatic Monitoring system included TFT 8” panel pc with an electronic board dedicated for reach the incredible performance for which this instrument is designed.
With a resolution of 1024 × 768 and 16 M colours for granting the maximum visibility of all parameters, equipped with 2 usb ports and RJ45 for Ethernet connection.
New generation end-user friendly software developed by our software technical engineers with a step-by-step procedure for perform analysis.
Internal database can be contain over than 60’000 analysis that can be printed out or exported with an Usb key that accompanied the main instrument.
The software can be switch temperature from °C in °F, calibration of the bath up to 100 points for grant the maximum precision.
Other features
Display pressure in bar/psi/Kpa
Real time graph creation
Export file in xls, jpg and pdf format
5 pre-charged methods (12 / 24 / 48 / 96 and 192 hours)
Internal tank and mechanical parts
Internal stainless steel chamber with high-tech insulation
Magnetic rotation of internal cylinder with no-contact system
Automatic oxygen charge-discharge line
PT100 class A probe are used for control the temperature and prevent overheating
Accessories
LAB-101-922/CU: copper wire catalyst 3 meters, pack of 5
LAB-101-441/P: silicon carbide paper 100 grit, pack of 100

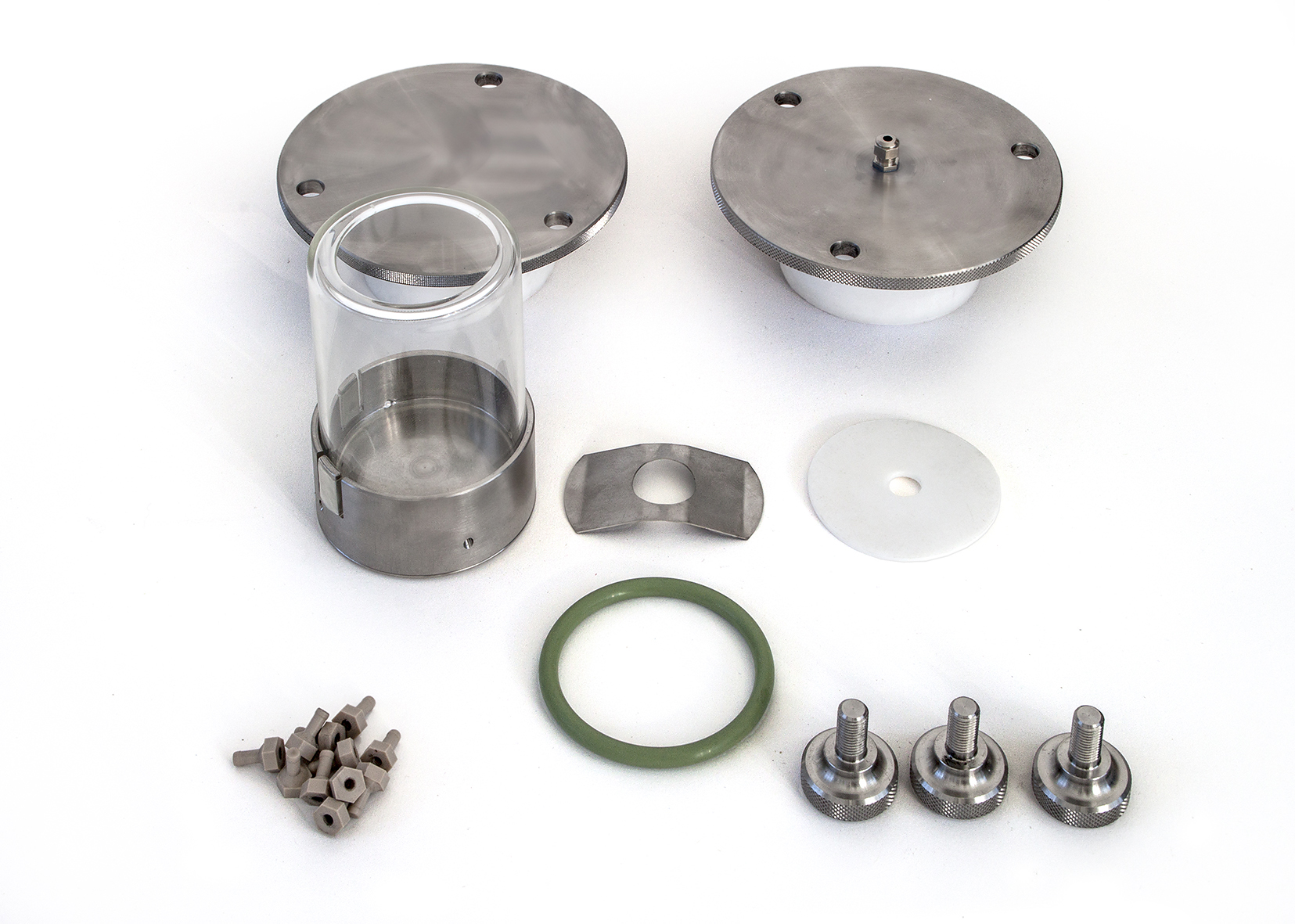

Spare Part
LAB-101-974/571-A: glass container 175 ml pack of 3 pcs.
LAB-101-974/571-B: cover in PTFE for glass, pack of 5 pcs.
LAB-101-974/571-C: beaker centering made in PTFE, pack of 3 pcs.
LAB-101-974/571-D: spherical cone, pack of 5 pcs.
LAB-101-974/D: compensation spring made in stainless steel
LAB-101-974/571-E: o-ring for cell cover, pack of 5 pcs.
Optional Accessories
LT/WM-227200: electric winding mandrel for copper wire catalyst coiling, mounted on solid base whit possibility to fix to bench, 220 Vac 50/60 Hz
LAB-101-922/CU500: copper wire 500gr, 1.6 mm diameter / approx. 28 mt
ALINK: software network connection for remote control of OilLab 571; it permit the control and monitoring of up to 10 Oillab 571

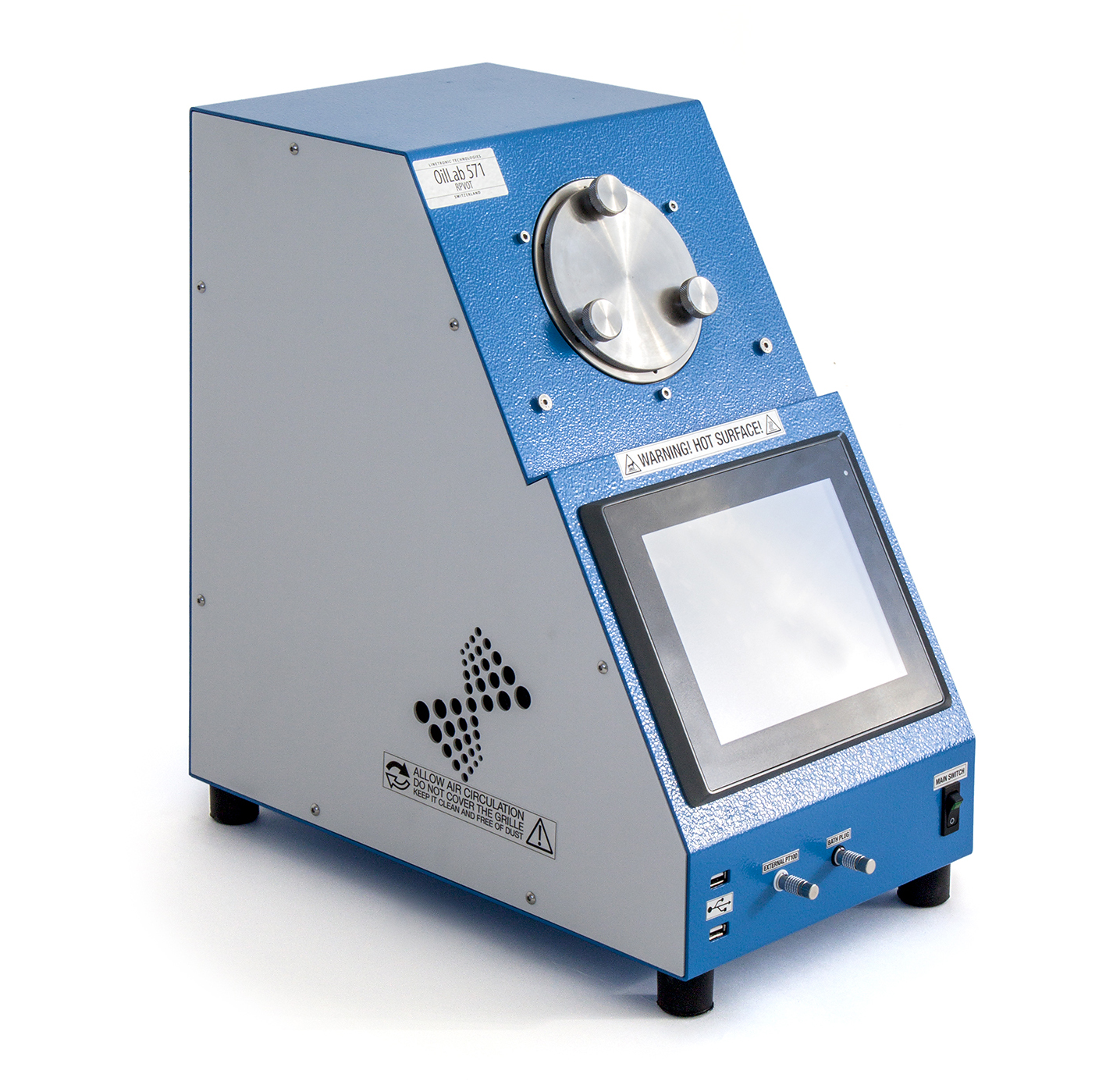

OilLab 571
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.
