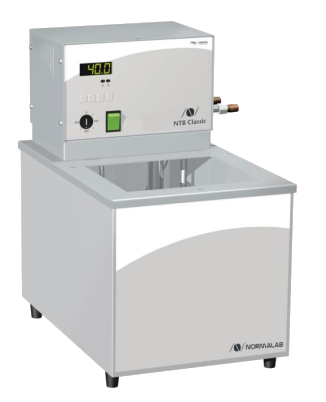

NTB Classic
Copper strip corrosion by petroleum products
STANDARDS
ASTM D130
DIN 51811
ASTM D4048
ISO 2160
IP 112
SCOPE
Constant temperature test bath
MAIN CHARACTERISTIQUE
Model "NTB CLASSIC/D130"
- Temperature range from ambient to 250°C / 482 °F
- Reading : Standard °, F° on request
- Used materials inside bath : stainless steel 304, PTFE
- Setting ± : 0.1°C
- Stability * ± : 0.02°k
- Heatings : 1.5 kw
- Bath volume : 16 L
- Bath depth : 200 mm
- Opening bath : 6 * 51 mm
NECESSARY ACCESSORIES FOR ALL PROCEDURE
- REF 24541 Single strip polishing vise
- REF 12067 Silicon carbide papers, 240 grits
- REF 225051000 Pack of 1 kg silicon carbide powder, 150 mesh
- REF 15115 Pack of 10 copper strips
- REF 15114 Copper strip corrosion test standard
- REF 19008 Flat glass test tube
- REF 12780 Test tube 25 x 150 mm (6 max into 23007)
- REF 19008 Flat glass test tube
- REF 47182500 Iso-octane purity > 99,7%
- REF J02017 Dish for an easier polishing (25 x 31 x 6,5)
NECESSARY ACCESSORIES FOR AVIATION GASOLINE AND HIGHER VAPOR PRESSURE SAMPLES
- REF 941492 Test cylinder (6 max into 23007)
- REF 23005 Lid and mounting hook (6 pcs included with the bath 23207)
NECESSARY ACCESSORIES FOR DIESEL FUEL, FUEL OIL, AUTOMOTIVE GASOLINE
- REF 23008 Holder for test tube p/n 12780 (bath 23007, max 6)
ORDERING INFORMATION
- REF 23007 230 V - 50/60 Hz
- 455x295x440 mm (±40 kg)
NTB Classic
