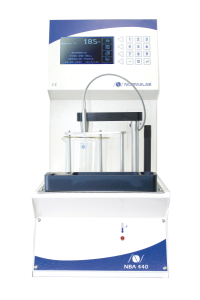

NBA 440
Automatic softening point of bitumen ring & ball
STANDARDS
ASTM D36
EN 1427
ISO 4625
IP 58
DIN 52011
SCOPE
This test method covers the determination of the softening point of bitumen
MAIN CHARACTERSTICS
- Large display
- Automatic detection of softening point by optical cells
- Data Storage : 200 results
- Quick access to calibration parameters
- Auto diagnostic
- 4 preset of programmable methods available
- Controlled heating rate and stirring speeds
- Preheating cycle
- Cooling by fan at the end of the test
- WATERPROOF heating element
- RS232C output
- Data acquisition Supervisor Software include possibility to collect the data for a LIMS
SCOPE OF DELIVERY
- REF 20764 Pack of 10 straight rings
- REF 20766 Pack of 10 balls
- REF 40390 Roll of Seiko DPU 414 printer paper
- REF 40138 Ring & ball cradle for preconditioning the samples
- REF 17487 Calibrated beaker ASTM D36
- REF 17490 Calibrated beaker ISO1427
- REF 40139 Pt 100 probe for NBA 430/440
CONSUMABLE
- REF 17487 Calibrated beaker ASTM D36
- REF 20764 Pack of 10 straight rings
- REF 20765 Pack of 10 shouldered rings
- REF 25666 Pack of 10 conical rings
- REF 40390 Roll of printer paper
- REF 17490 Calibrated beaker ISO1427
- REF 20766 Pack of 10 balls
ORDERING INFORMATION
- REF 40100 NBA 440 For use on AC 230V - 50Hz - 4 A
- REF 40100 / 115 V NBA 440 As above unit – 115V, 50/60Hz
- (W) 260 x (D) 535 x (H) 500 mm (±20kg)
NBA 440
