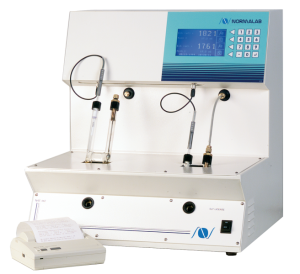

NAE 440
Aniline point and mixed aniline point of petroleum products and hydrocarbon solvents
STANDARDS
ASTM D611
IP 2
DIN 51775
ISO 2977
SCOPE
Standard Test Methods for Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents
MAIN CHARACTERSTICS
- 2 independent stations
- Test temperature range :
Ambient to 150°C (optional cryostat for lower temperatures)
Detection of clear, colored and dark products < 8 on ASTM Color Scale
- Heating system by metallic bath
- Possibility to visualise the test (detection by operator) for double check
- Data storage : 200 results
- Quick access to calibration parameters
- Auto diagnostic
- RS232 output
- Data acquisition Supervisor Software included
Possibility to collect the data for a LIMS
SCOPE OF DELIVERY
- NAE 440 delivered ready for use with :
- REF 40536 PT100 Probe for NAE 440 x 2
- REF 40546 20 ml U-Tube for NAE 440 x 2
- REF 40390 SEIKO ¨TICKET PRINTER
CONSUMABLES
- REF 40390 Paper roll for Seiko DPU 414 printer
- REF 40546 20 ml U-Tube for NAE 440
ORDERING INFORMATION
- REF 40500 NAE 440 For use on AC 230 V - 50 Hz - 1.5 A
- (W) 520x (D) 490x (H) 540 mm (± 30 kg)
