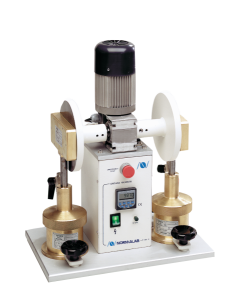

GWM Classic
STANDARDS
ASTM D217
IP 50
DIN 51580
ISO 2137
SCOPE
This test method covers four procedures for measuring the consistency of lubricating greases by the penetration of a cone of specified dimension, mass and finish. The penetration is measured in 1/10 of a millimetre. The sample requires a special preparation by grease worker.
MAIN CHARACTERSTICS
- Electric machine 2 places with motor
- Reduction 60aller-retour/minute
- Using electronic counter to control the strokes number
- Preset number of shots
SCOPE OF DELIVERY
- GWM CLASSIC delivered ready for use with :
- REF 9410759 Thermometer for grease worker
- REF 941759 Plunger plate ASTM (51 holes)
- REF 941750 Hand grease worker with cup/cover
- REF 9417584 Cup & Cover for automatic grease worker
ACCESSORIES
- REF 941760 Plunger plate Fed. Spec. (270 holes)
- REF 941739 Grease cutter with blade (210x140x170 mm) ±2 kg
- REF 27322 Spatula 30x200 mm
ALTERNATIVE-MANUAL GREASE WORKER
- REF 941750 Hand grease worker with cup and thermometer
- REF 941759 Plunger plate ASTM (51 holes)
- REF 941760 Plunger plate Fed. Spec. (270 holes)
ORDERING INFORMATION
- REF 9417582 GWM CLASSIC For use on AC 400 V, three-phase, 50 Hz, 16 A
- (W) 400 x (D) 260 x (H) 500 mm (±29kg)
GWM Classic
