ASTM D892, DIN 51566, IP 146
Foaming Characteristics of Lubricating Oils.
This test method covers the determination of the foaming characteristics of lubricating oils at 24°C and 93.5°C. Means of empirically rating the foaming tendency and the stability of the foam are described.

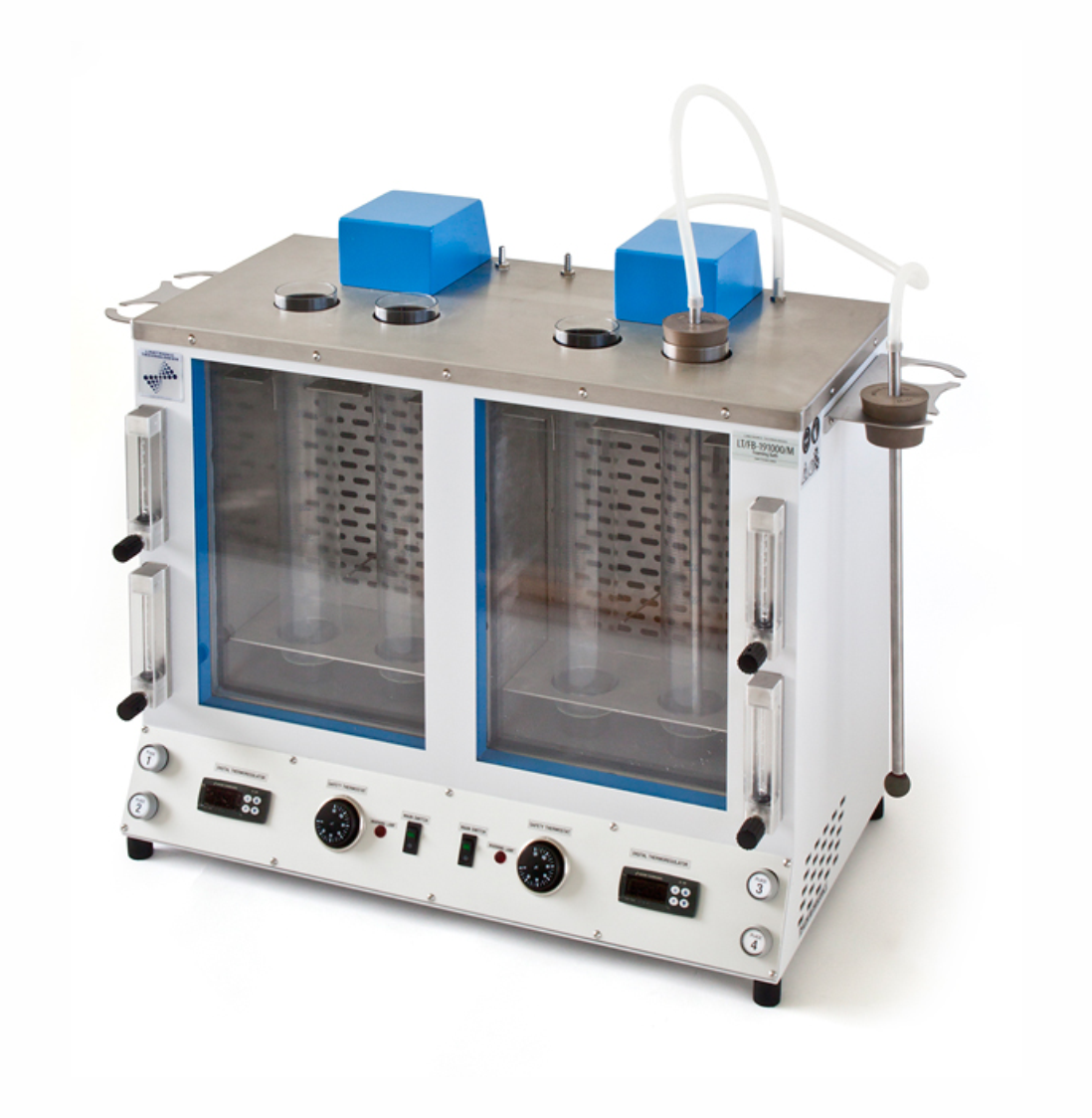

Art. LT/FB-191000/M
Foaming Bath (4 places) - ASTM D892
Compact structure painted with anti-acid epoxidy products with 2 double standby support for rubbers and air diffuser glass tubes.
2 independent bath insulated and equipped with 2 wide double windows equipped with illuminating LED barriers.
2 drain tap.
Air coil placed into the bath at 24°C with the output placed on the left side for the air volume control.
Cover with 4 holes for the accommodation of up to 4 foaming test cylinders.
Cooling coil.
On the front the 4 flowmeter with regulating knob grant the easy adjustment of the air flow as foreseen by the method.
On the base 2 digital thermoregulator with PID (one for 24°C and one for more than 93.5°C) with over-temperature alarm and probe PT100A.
Heating supplied by stainless steel heater.
Main switch , 2 safety thermostat for overheating, 4 button to activate the 4 built in low voltage micro pump.
Motor stirrer.
Four graduated cylinders.
4 diffuser stones (not certified).
4 rubber stoppers, 4 air diffuser tubes.
Cord cable
User manual
Dimensions (cm)
Width 71
Depth 40
Height 67
Power Supply
220Vac
50/60Hz

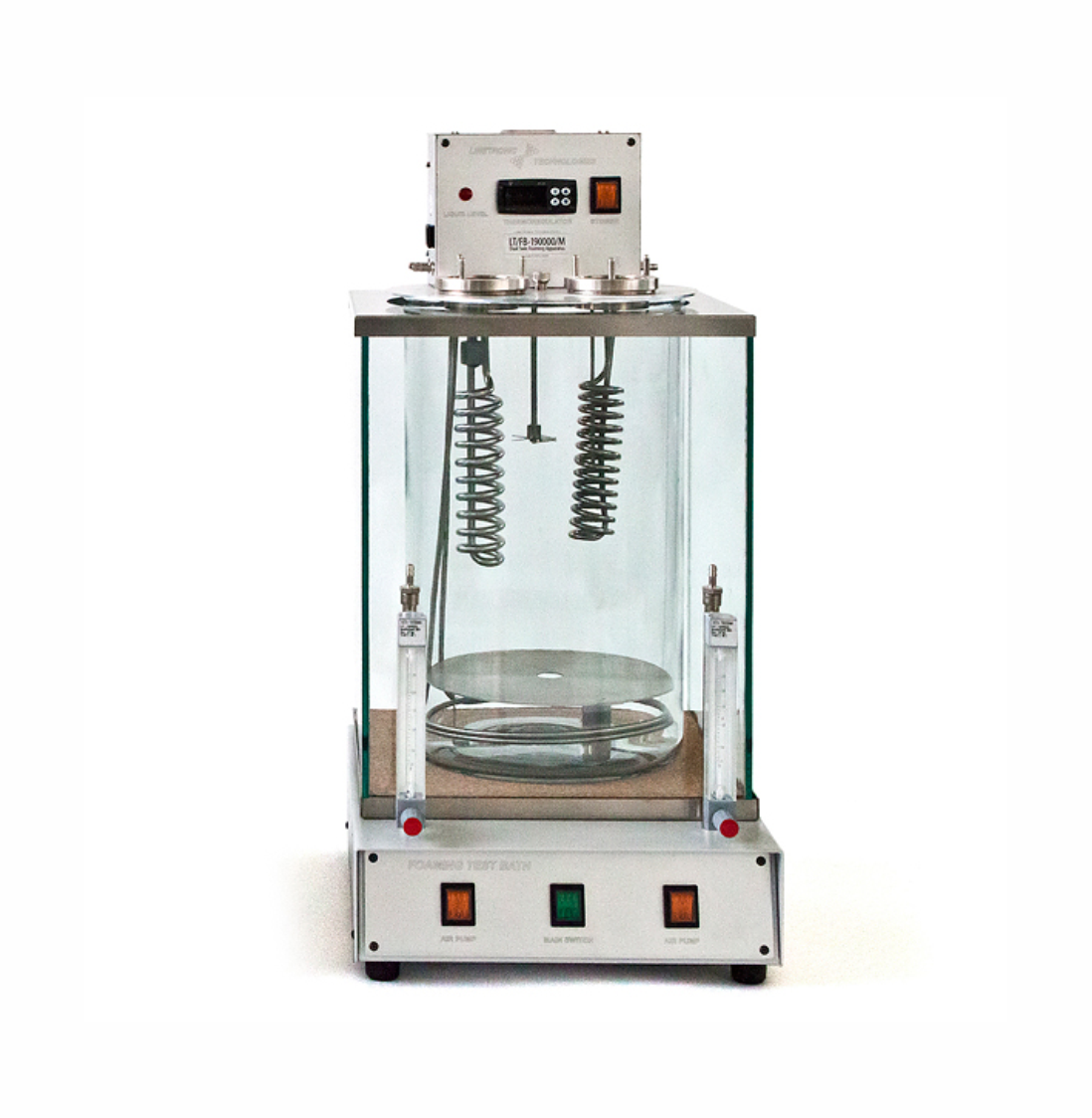

Art. LT/FB-190000/M
Manual 2 Places - Twin Foaming Bath - ASTM D 892
Tank fitted with cover with two holes Ø 125 mm which allows two cylinders to get through
Cooling coilHeating supplied by an armoured stainless steel heaterPlate base painted with anti-acid epoxy products which houses a digital thermoregulator PID with over-temperature alarm and probe PT100A
Two independent blowing pumps connected to two flowmeters
Motor stirrer
Two flowmeters
Two graduated cylinders
Two diffuser stones
Two rubber plugs
Diffuser tubes
Accessories
LAB-101-883/C: certified diffuser stone
LAB-101-886: flow indicator calibrating device, digital display readout, AA battery supply power / 230Vac power connection, flow mass up to 500 L/m
LAB-101-887: Mott metal cylindrical diffuser (tested and verified) – ASTM D6082
LAB-100-332: digital stopwatch
T-AS12C: thermometer ASTM 12C
Spare Parts
LAB-101-880: graduated cylinder 1000 ml
LAB-101-882: rubber stoppers, pack of 2 pcs.
LAB-101-883: diffuser stone (not certified)
LAB-101-883/C: certified diffuser stone
LAB-110-012: heaters, pack of 2 pcs.
LAB-140-002: PT100 probe
LAB-160-014: digital thermoregulator
LAB-150-015: static relay
CE marked
Foaming Characteristics of Lubricating Oils
