ASTM D113, IP 32 (obs.)
Ductility of Bituminous Materials.
The ductility of a bituminous material is measured by the distance to which it will elongate before breaking when two ends of a briquet specimen of the material are pulled apart at a specified speed and at a specified temperature. Unless otherwise specified, the test shall be made at a temperature of 77 + 0.9°F (25 + 0.5°C) and with a speed of 5 cm/min ± 5.0%. At other temperatures the speed should be specified.
Art. LT/DU-73000/M

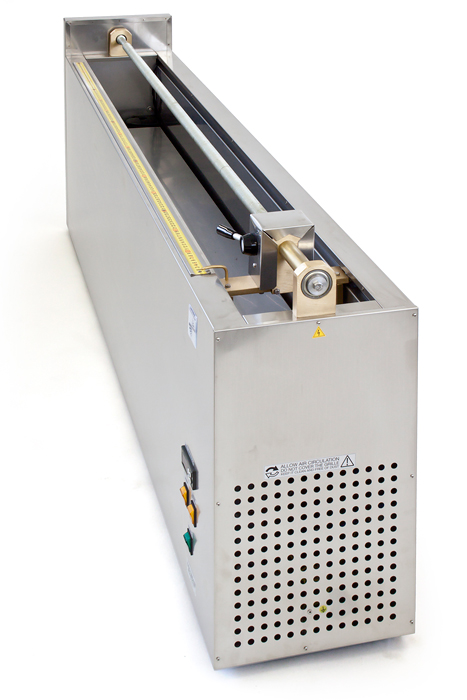

Ductilometer - ASTM D113
Three-place stainless steel structure with a 1.500 mm stroke
Transmission of 10 revolutions on square-thread traction rod
Speed 5 cm/min
One-phase Geared motor ¼ Hp
Stainless steel tank with white bottom
Insulated walls
Armoured
stainless steel heater controlled by a digital thermoregulator
with over-temperature alarm and probe PT100A
Cooling coilTraction brass carriage holding moulds
Circulation pump for stirring the liquids
Art. LT/DU-73000-R/M
Ductilometer - ASTM D113
Three-place stainless steel structure with a motion of 1500 mm
Refrigerating system for 5°C tests temperatures
Transmission of 10 revolutions on square-thread traction rod, speed of 5 cm/min
One-phase geared motor ¼ Hp
Stainless steel tank with white bottom
Insulated walls
Armoured stainless steel heater controlled by a digital thermoregulator
with over-temperature alarm and probe PT100A
Safety thermostat
Cooling coil
Traction brass carriage holding moulds
Circulation pump for stirring the liquids
Power Supply
220 Vac 50/60 Hz
Dimensions
cm 180 × 45 × 65
Weight
kg 60
Accessories
T-AS63C: thermometer ASTM 63C
Spare Parts
LAB-100-731: ductility form
LAB-100-732: form storage
LAB-100-733: elastic recovery mould form
CE marked
Ductilometer
