ASTM D70, ASTM D71, ASTM D287, ASTM D1298, ASTM D1481, ASTM E100, IP 160, IP 189, IP 190, ISO 3675, ISO 3838, JIS K 2207, JIS K 2249, JIS K 2265
ASTM D287 - Api gravity of crude petroleum and petroleum products.
Covers the determination by means of a glass hydrometer of the API gravity of crude petroleum and petroleum products normally handled as liquids and having a Reid vapour pressure (Test Method D323) of 26 psi (180 kPa) or less.
ASTM D1298 - Density, relative density (specific gravity), or API gravity of crude petroleum and petroleum products by hydrometer.
Covers the laboratory determination using a glass hydrometer, of the density, relative density (specific gravity), or API gravity of crude petroleum, petroleum products, or mixtures of petroleum and non-petroleum products normally handled as liquids, and having a Reid vapour pressure of 14.696 psi (101.325 kPa) or less.
Art. LT/DB-55112/M
Digital densimetry bath
Painted metal case with insulated double wall
12 test places
Internal bath made of stainless steel
Capacity 42 litres approx.
Support with 12 holes ∅ 51 mm for 50 × 440 mm test tubes
Test tubes blocking system
Digital thermoregulator PID ± 0.1° with over temperature alarm and probe PT100A
Double motor stirrer
Safety thermostat
2 stainless steel heaters, total power 4000 W
Working temperature up to 230°C
Drain tap and overflow
Dimensions
35 cm × 70 cm × 60 cm
Weight
27 kg
Densimetry Bath
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.

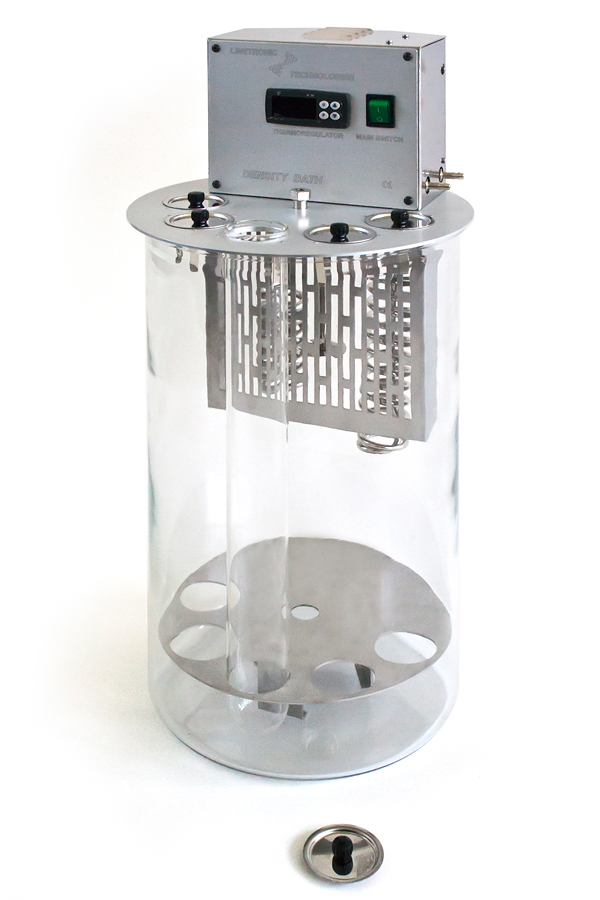

Art. LT/DB-55100/M
Digital densimetry bath with base
Tank about 29 litres capacity
Cover with five holes ∅ 51 mm for 50 × 440 mm test tubes
Control unit in painted sheet with digital thermoregulator PID ± 0.1° with over temperature alarm and probe PT100A
Motor stirrer
Stainless steel heater
Cooling coil for working ambient temperature
Test tubes blocking system
Dimensions
∅ 56 cm × 65 cm
Weight
12 kg
Power Supply
220Vac 50/60 Hz
115Vac 60 Hz
Accessories
LAB-100-552/45: protection jacket for low temperature, for tank 29 litres
LAB-100-553: test tubes 50 × 440 mm, pack of 5
LAB-100-555: cylinder for densimetry with foot, 450 mm height
T-AS12C: thermometer ASTM 12C - IP 64C
Spare Parts
LAB-100-553: test tubes 50 × 440 mm, pack of 5
LAB-100-555: cylinder for densimetry with foot, 450 mm height
LAB-140-002: PT100 probe
LAB-110-012: heater
LAB-160-014: digital thermoregulator
LAB-150-015: static relay
CE marked
