ASTM D4340
Standard Test Method for Corrosion of Cast Aluminum Alloys in Engine Coolants Under Heat-Rejecting Conditions.
This test method covers a laboratory screening procedure for evaluating the effectiveness of engine coolants in combating corrosion of aluminum casting alloys under heat-transfer conditions that may be present in aluminum cylinder head engines.
Art. LT/CA-222000/M

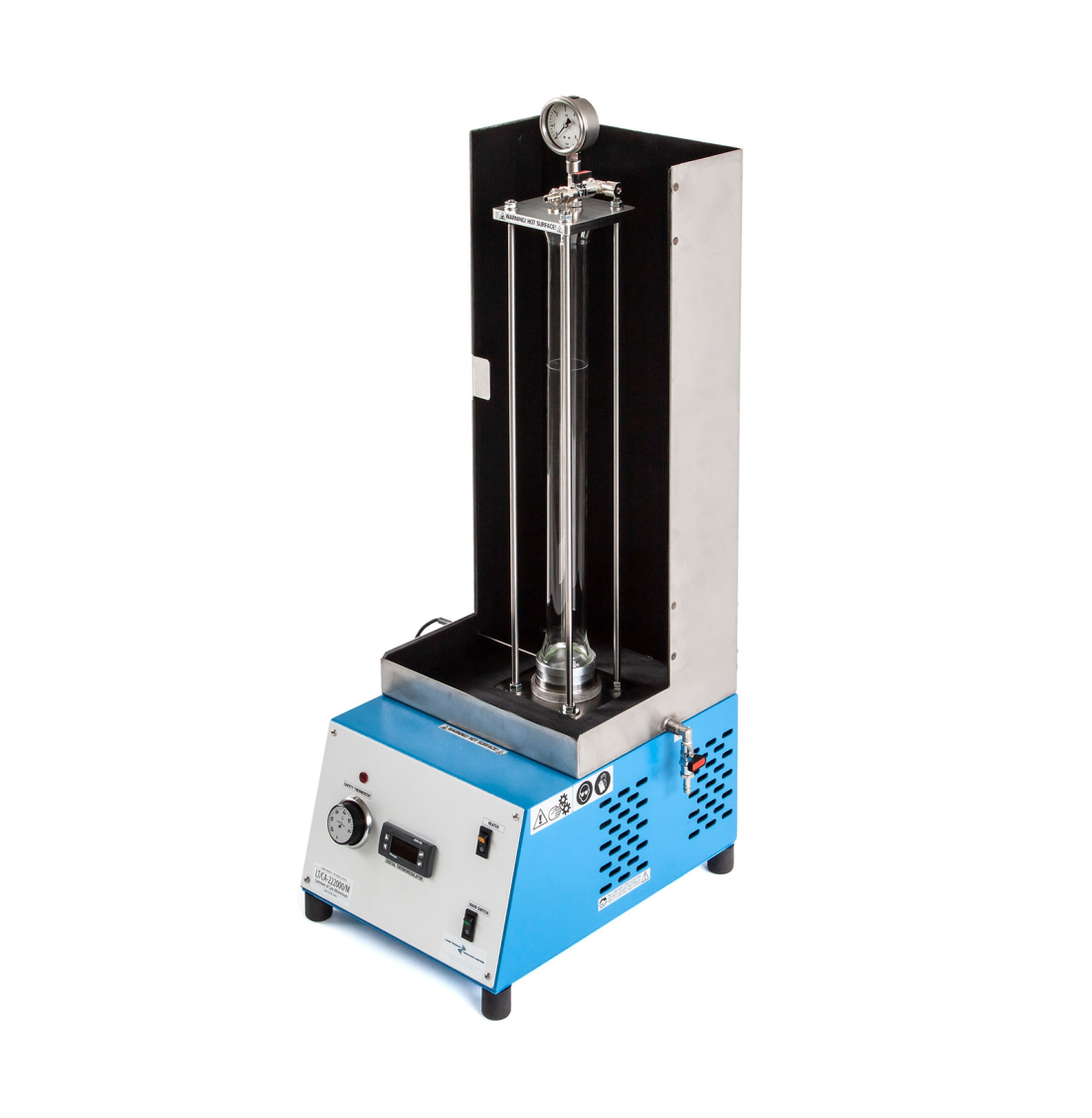

Corrosion of Cast Aluminum Alloys in Engine Coolants Apparatus
Stainless steel cabinet equipped with liquid collector and drain trap
Protection window with open/ closed feature that include: Pyrex glass cell complete with o-ring, heat transfer plate made in aluminium positioned on heating plate
Top plate with for pressure inlet at 138 Kpa, safety valve and pressure gauge
Digital thermo-regulator with 0,1°C resolution
Digital timer with the presetted work cycle of 168 Hrs
PT100 sensor A Class for temperature reading
Safety thermostat to prevent overheating
Cooling Fan
Working temperature: up to 160°C
Power Supply
220 Vac 50/60 Hz
Max. Power Consumption
1000 W
Dimensions
width 32 cm
depth 42 cm
height 88 cm
Weight
25 kg
Accessories
LAB-222-001: cast aluminium heat transfer
Spare Parts
LAB-222-001: cast aluminium heat transfer
LAB-222-002: PT100 probe for cast aluminium heat transfer, 3 × 180 mm
LAB-222-003: sealing o-rings, pack of 2 pcs.
LAB-222-004: sample test cell 500 ml, level mark
LAB-222-005: heater collar 420 W, 60 × 50 mm, pack of 2 pcs.
LAB-222-006: safety thermostat 300°C
LAB-222-007: digital thermoregulator and programmer K38P
LAB-222-008: pressure gauge 63 mm diameter, 6 bar M1/4 G
LAB-222-009: pressure relief valve adjustable, 0/10Bar M1/4 G
LAB-222-010: pressure drain valve, 0/10 Bar 1/4G MF
LAB-222-011: static relay, 10/40 A
LAB-222-012: drain tap, 1/4G MF
LAB-222-013: quick coupling female 1/4 G for pressure inlet
CE marked
Corrosion of Cast Aluminum
