ASTM D217 - ASTM D1403
Cone penetration of lubricating grease.
Cover four procedures for measuring the consistency of lubricating greases by the penetration of a cone of specified dimensions, mass and finish.
Art. LT/GW-67000/M

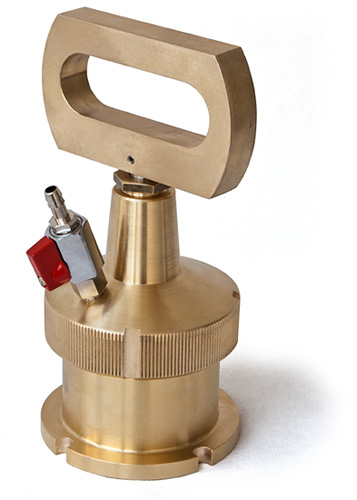

Manual Grease Worker ASTM D217 - D1403
Brass body
Screw cover with air valve and thermometer pass
Piston with ground-slideway brass handle allowing connection to a base with lever (art. 68000) or automatic machine (art. 69000, art. 70000)
Disc complying with ASTM regulations and with 51 holes ∅ 6.35 mm
Consistency of Lubricating Greases
For more information on this product or to arrange a call from one of the Cea Petrochemical Team, please complete the contact form below.
Art. LT/GW-68000/M
Slave Unit ASTM D217 - D1403
- For manipulating fats manually
- Adaptable to Manual Grease Worker (art. 67000)
Art. LT/GW-70000-1/M
Automatic Grease Worker ASTM D217 - D1403
- 5 figure stroke counter
- Automatic preselector
- Adaptable to Manual Grease Worker (Art. 670000)
- Art. LT/GW-70000-2/M
- Automatic Grease Worker (2 places)
Power Supply
220Vac 50/60 Hz
Dimensions
cm 45 × 40 × 60
Weight
kg 15
Accessories
LAB-100-682: churn plate FTM with 270 ∅ 1.58 mm holes
LAB-100-710: grease cutter
LAB-100-714: half-scale grease worker ASTM D1403, stainless steel,
with 8 ∅ 6.35 mm holes
LAB-100-718: quarter-scale grease worker ASTM D1403, stainless steel,
with 8 ∅ 3.17 mm holes
T-0110: thermometer 0° +110°C
Spare Parts
LAB-100-681: disc ASTM with 51 ∅ 6.35 mm holes
CE marked
