Brookfield Liquid Bath | Laboratory Instruments

Low Temperature Brookfield Viscosity

Test Methods

ASTM D2983

IP 267

DIN 51398

Models Available

BLB 701

BLB 702

SimAir® | DIN Liquid Bath

About

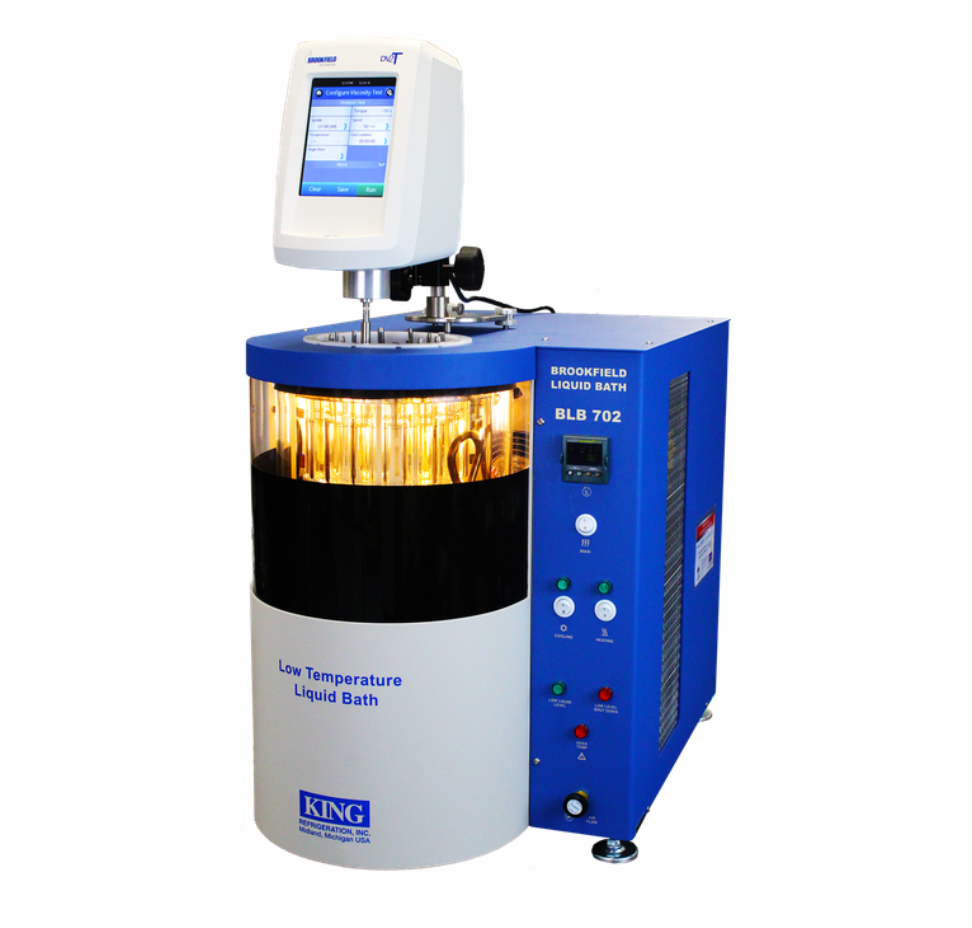

King Brookfield Liquid Bath (BLB) measures low temperature viscosity of ATF's, gear oils and hydraulic oils and other fluid lubricants using a patented SimAir® technique which allows the use of a small, less costly, constant temperature liquid bath. The only technique available that permits independent sample analyses which eliminates the need for batch sample testing.

The BLB is a widely used low-temperature test for a variety of industry specifications.

Features & Benefits

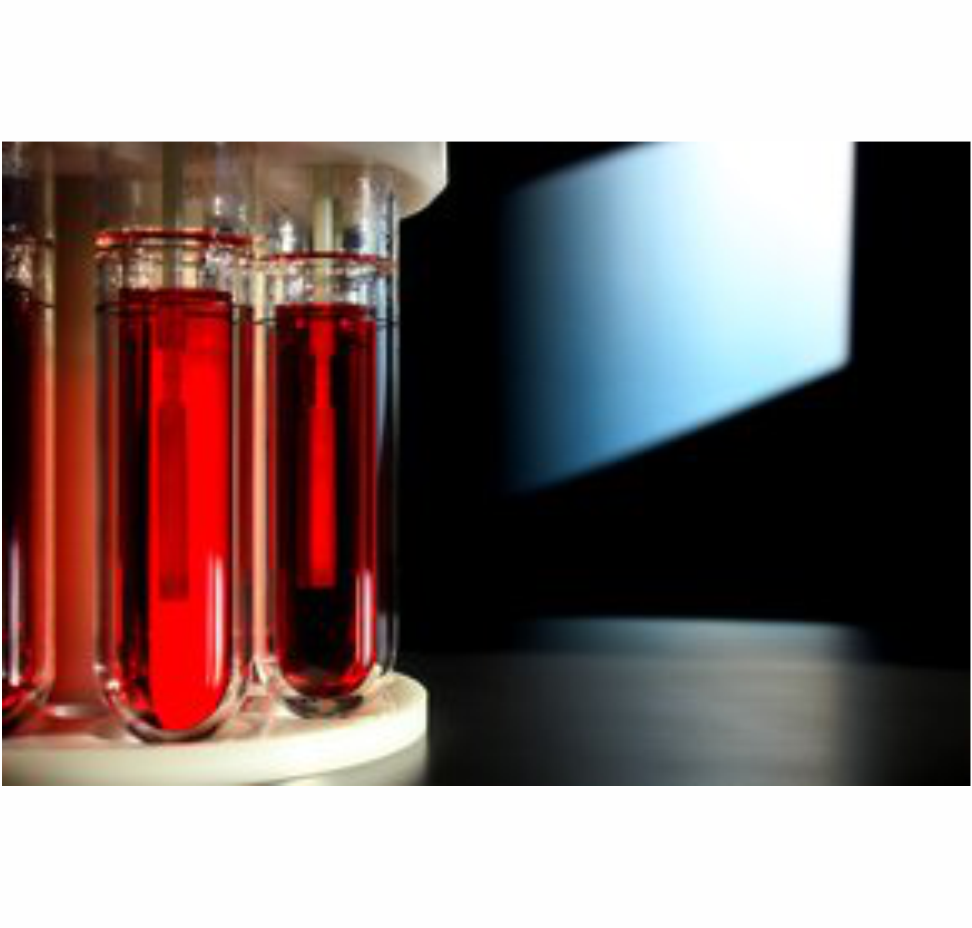

Unique Tannas SimAir® Test Cells provide proper sample temperature control for accurate, precise results and permits each test cell to operate independently, increasing productivity.

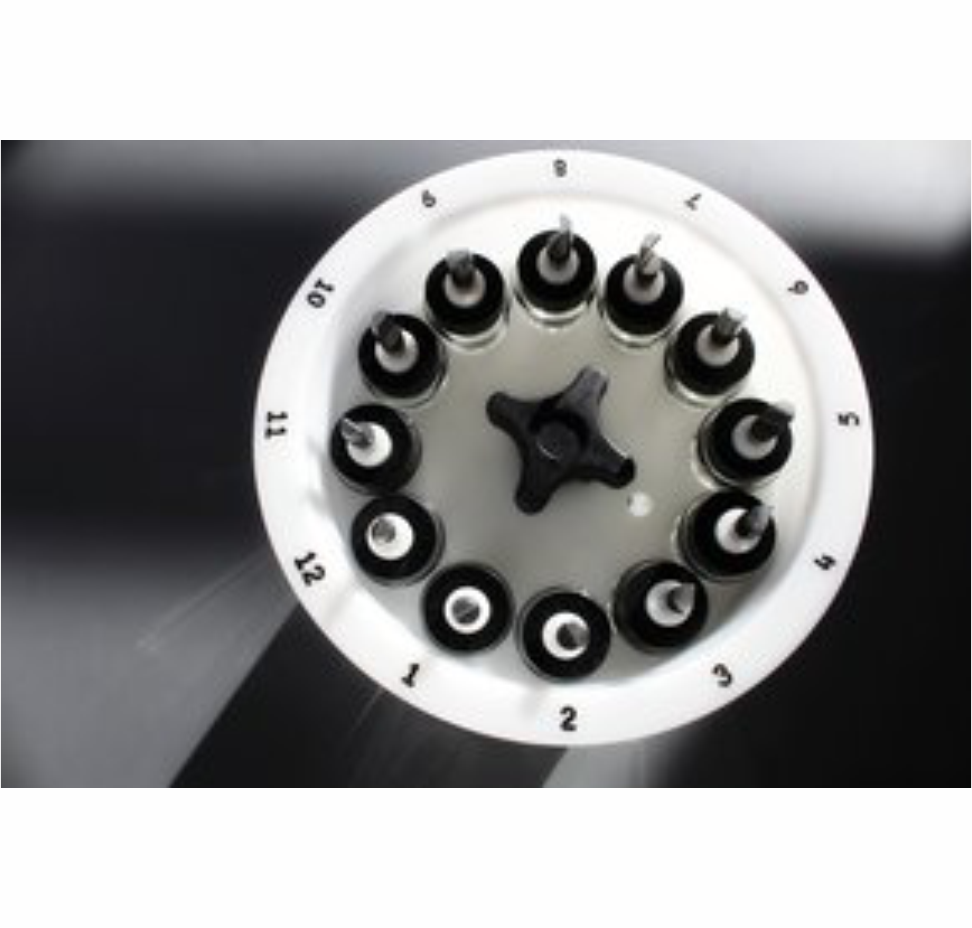

Features a 12-position carousel with 12 independent sample cells
BLB models: Capable of measuring a broad temperature range of +30°C to –70°C (BLB702) and +30°C to –40°C (BLB 701).
SimAir®/DIN model: Capable of measuring a broad temperature range of +30°C to –55°C.
Fully self-contained internal hermetic refrigeration system - no external refrigeration units or controllers needed.
Digital temperature controller keeps bath temperature within +/- 0.1°C.
Small bench top footprint with large illuminated viewing window.

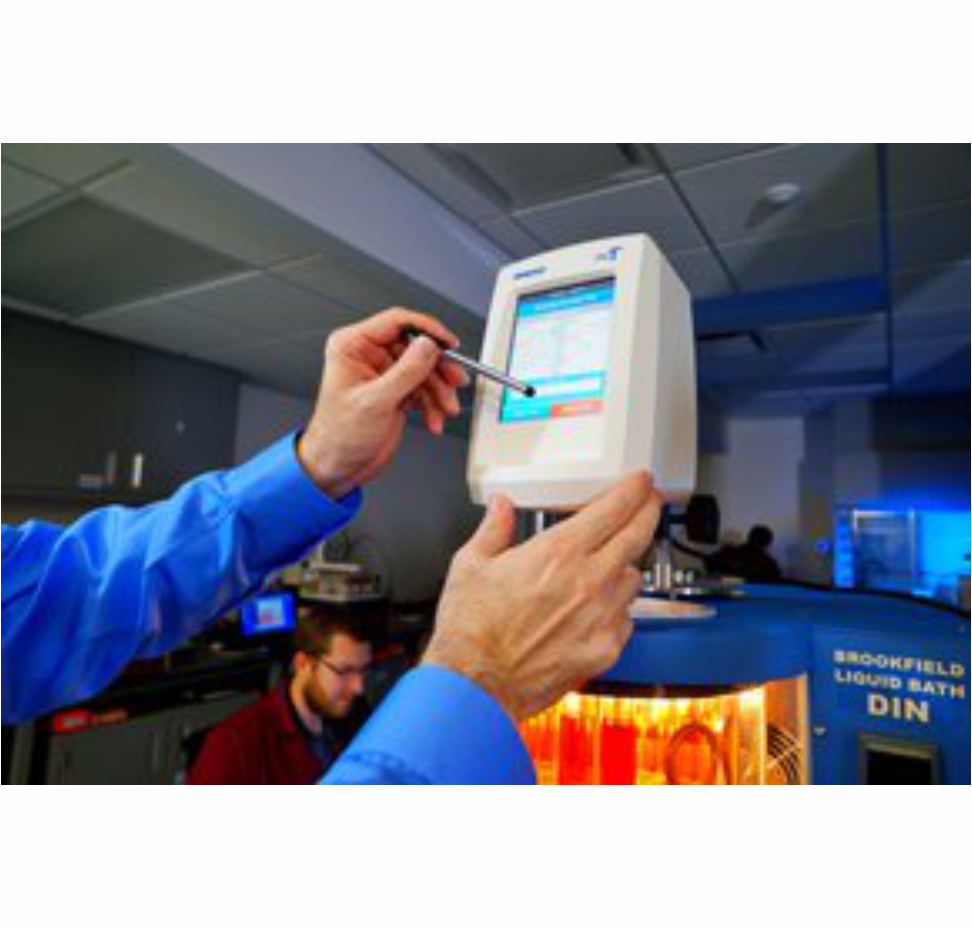

Includes top mount for Brookfield viscometer (viscometer available separately).
Internal air system provides a continuous blanket of dry air over samples to eliminate moisture buildup.
Safety features include high-pressure cutout, high temperature limits, and low level shutdown.

CE Mark

Reference Oil

LNP-5 | Low Temperature Newtonian Oil

Contact King Refrigeration for additional reference oils to run ASTM D2983 or DIN 51398.

Parts & Accessories

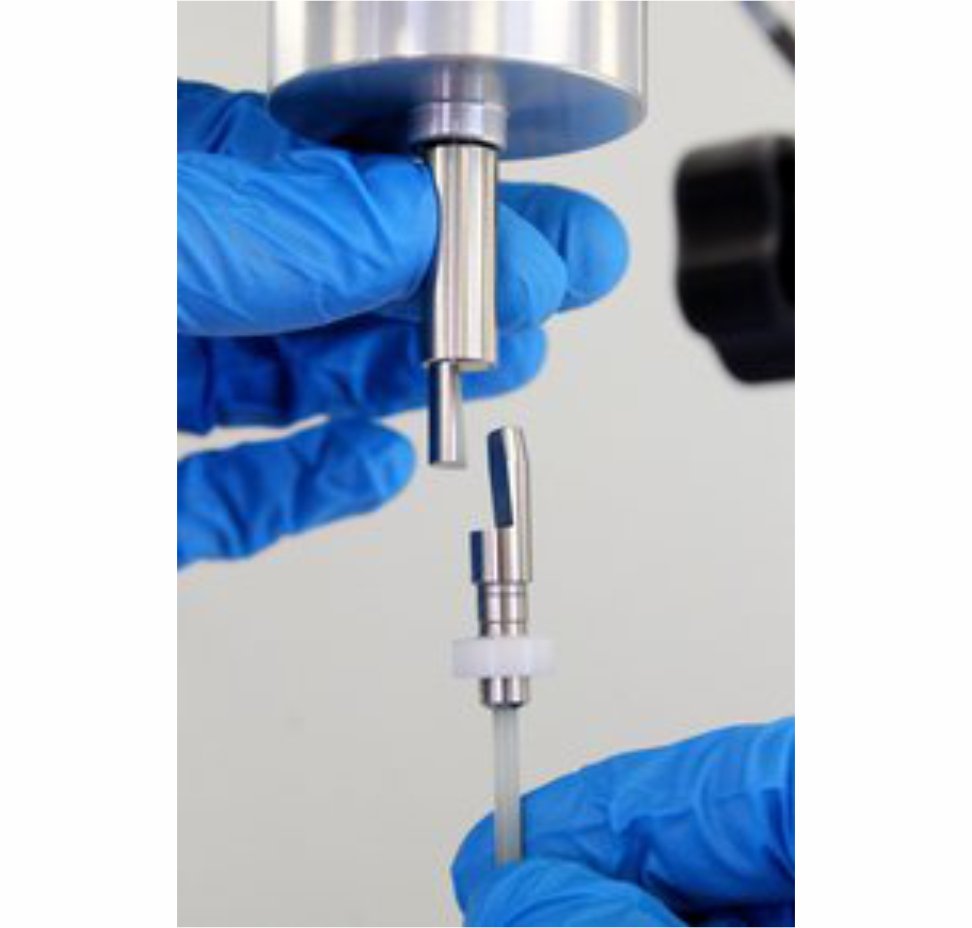

100235: Tannas D2983 SimAir™ Test Cell Assembly

(Includes: SimAir™ Glass Stator, Spindle Support,

Coupling Bottom, & SimAir™ Spindle Assembly)

100236: SimAir™ Glass Stator

170018: DIN Glass Stator

100019: Brookfield LVDV1 M Digital Viscometer

100005: Brookfield LV-DV2T Viscometer
