P 72 - IP 502
EN 12846, EN 13357
Viscosity Cutback Bitumen.
Measure of the viscosity by determining the time of efflux of 50 ml of a cutback bitumen, at 40°C, through a dedicated orifice.
Art. LT/BV-14000-1/M

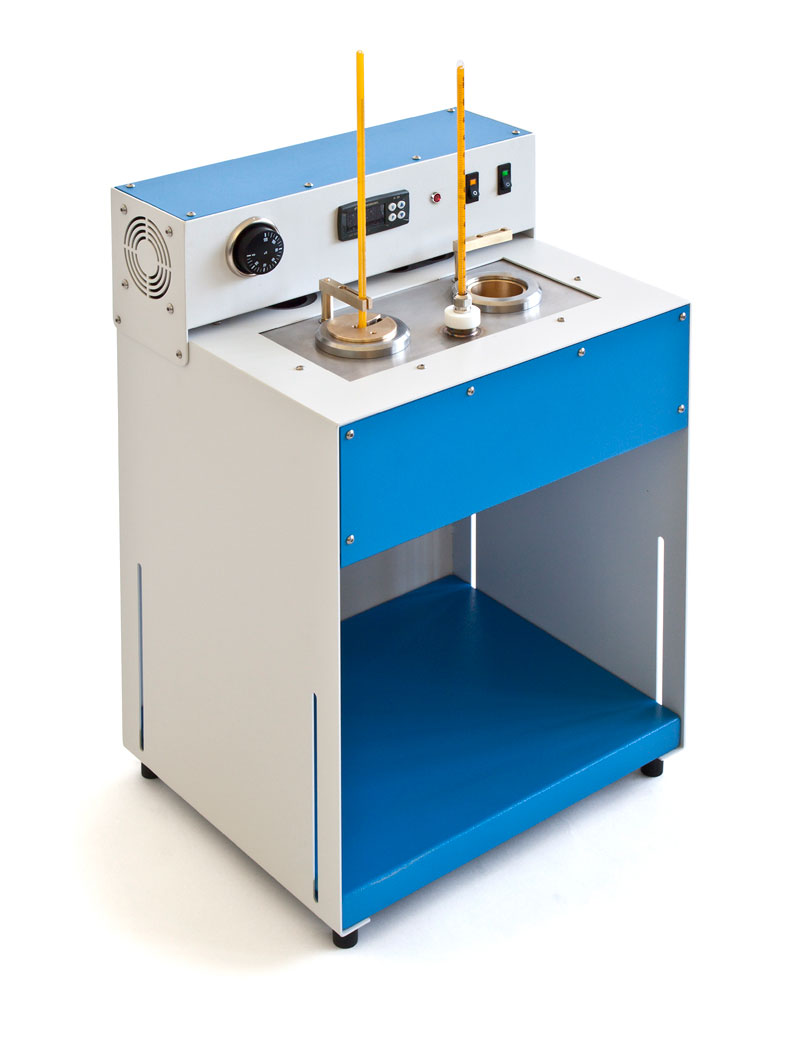

Digital B.R.T.A. Viscometer IP 72 - 2 places
Water bath made in stainless steel 18/8, insulated double wall, front opened jacket
Digital thermoregulator PID with over temperature alarm and PT100 A probe
Lid with double stainless steel heater
Motor Stirrer with shaft
Atmospheric drain with drain cock
Cooling coil with relevant joints for the connection to an external cooling source
Calibrated brass oil cup with orifice no.2 included (for each place)
Power Supply
220Vac 50/60 Hz
Dimensions
cm 45 × 50 × 85
Weight
kg 25
Accessories
LAB-100-141: calibrated brass cup with orifice ∅ 4
LAB-100-142: calibrated brass cup with orifice ∅ 10
LAB-100-144: go/not go gauge ∅ 4
LAB-100-145: go/not go gauge ∅ 10
LAB-100-143: receiver made in glass, pack of 5 pcs.
LAB-100-332: digital stopwatch
Thermometers
T-IP8C: thermometer IP 8C Redwood Low Range 0 °C …+45 °C Div. 0.2
Silicon Oil
LAB-100-371/50: silicon oil viscosity approx. 50 mm2 / S @ 25 °C, suitable for working temperatures up to +150 °C, can of 25 litres
Spare Parts
LAB-140-002: o-ring small for filling stopper, pack of 3 pcs.
LAB-100-140: calibrated brass cup with orifice ∅ 2
LAB-100-146: go/not go gauge ∅ 2
CE marked
B.R.T.A. Viscometer
